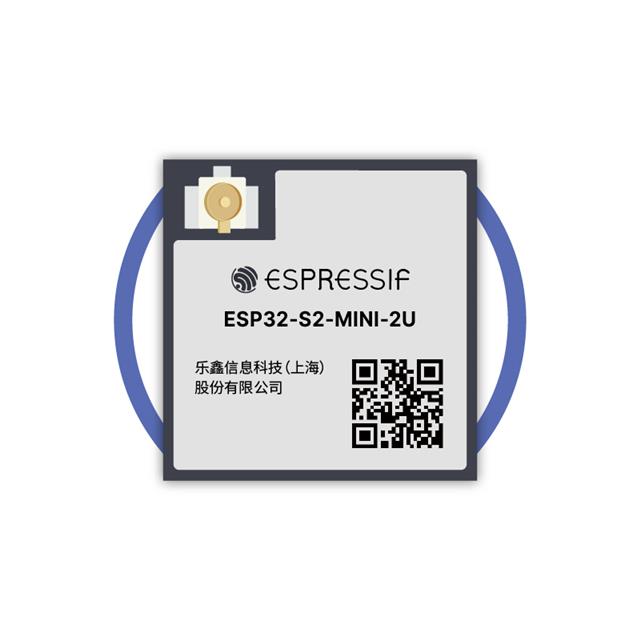

ESP32-S2-MINI-2U-N4

ESP32-S2-MINI-2U-N4 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Espressif Systems. Its product description is RF TXRX MODULE WIFI U.FL SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for ESP32-S2-MINI-2U-N4

• Description：RF TXRX MODULE WIFI U.FL SMD
• Series：ESP32
• Mfr：Espressif Systems
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：WiFi
• Protocol：802.11b/g/n
• Modulation：-
• Frequency：2.4GHz
• Data Rate：150Mbps
• Power - Output：19.5dBm
• Sensitivity：-97dBm
• Serial Interfaces：ADC, GPIO, I2C, I2S, SPI, PWM, UART, USB
• Antenna Type：Antenna Not Included, U.FL
• Utilized IC / Part：ESP32-S2FH4
• Memory Size：4MB Flash, 128kB ROM, 336kB SRAM
• Voltage - Supply：3V ~ 3.6V
• Current - Receiving：63mA ~ 68mA
• Current - Transmitting：160mA ~ 310mA
• Mounting Type：Surface Mount
• Operating Temperature：-40°C ~ 105°C (TA)
• Package / Case：56-VFQFN Exposed Pad

RF Transceiver Modules And Modems datasheet and documents for ESP32-S2-MINI-2U-N4
