F-363XP

Power Transformers Overview

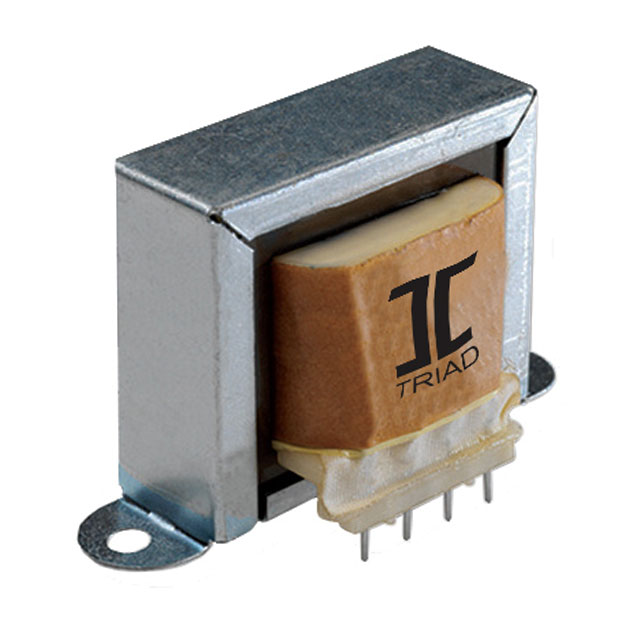

The Triad Magnetics F-363XP is a board-mount power transformer designed for industrial applications. It features a laminated core construction with dual primary windings rated for 115VAC and 230VAC input configurations. The secondary output provides 230.0VCT at a current rating of 0.020A, delivering a total power capacity of 4.5VA. The unit utilizes PC pin termination for through-hole mounting on printed circuit boards and offers 1500Vrms isolation voltage between windings.

Power Transformers Feature Summary

• Provides high-voltage step-up transformation from standard low-voltage AC inputs to a 230VCT secondary output.
• Features dual primary winding configuration allowing flexible operation across 115VAC and 230VAC supply networks.
• Constructed with a laminated core design optimized for efficient power transfer in compact board-mount form factors.

Power Transformers Applications

• Industrial control systems requiring isolated high-voltage AC signals
• Equipment utilizing vacuum tube or gas discharge components needing specific plate voltages
• Test and measurement instrumentation requiring precise AC voltage stepping

Power Transformers Procurement Notes

Verify the specific voltage and current ratings against your circuit requirements before ordering. Confirm that the PCB footprint matches the component's terminal spacing. Ensure the operating environment temperature range aligns with the transformer's thermal specifications. Check for compliance with relevant safety standards required for your final assembly.

Power Transformers Selection Notes

Select this component when a dedicated 230VCT output is needed from a 115/230VAC source. Consider the 4.5VA power limit to ensure it meets the load demands without saturation. Evaluate the physical dimensions to confirm fit within the enclosure constraints. Compare isolation voltage requirements to ensure 1500Vrms is sufficient for the application's safety margins.

Power Transformers Part Context

This part belongs to Triad Magnetics' general-purpose power transformer lineup. It is distinct from medical-grade or toroidal variants due to its laminated core structure and specific voltage ratio. The F-series designation typically indicates standard industrial grade performance with through-hole mounting capabilities suitable for automated PCB assembly processes.

Power Transformers Replacement Considerations

Consult official Triad Magnetics documentation for direct cross-references. Verify that any substitute maintains identical electrical parameters, including the 230VCT secondary and 4.5VA rating. Ensure mechanical compatibility regarding pin pitch and mounting style. Do not assume interchangeability with higher-power or different voltage-ratio models without explicit manufacturer confirmation.
