Product Detailed Parameters
- Description：PWR XFMR LAMINATED 24VA TH
- Series：Single Primary
- Mfr：Triad Magnetics
- Package：Box
- Type：Laminated Core
- Voltage - Primary：115V, 230V
- Voltage - Secondary (Full Load)：Parallel 10V, Series 20V
- Current - Output (Max)：Parallel 2.4A, Series 1.2A
- Primary Winding(s)：Dual
- Secondary Winding(s)：Dual
- Center Tap：No
- Power - Max：24VA
- Mounting Type：Through Hole
- Termination Style：PC Pin
- Size / Dimension：41.28mm L x 57.15mm W
- Height - Seated (Max)：34.93mm
- Voltage - Isolation：1500Vrms
- Weight：0.832 lb (377.4 g)
Download product information
Overview

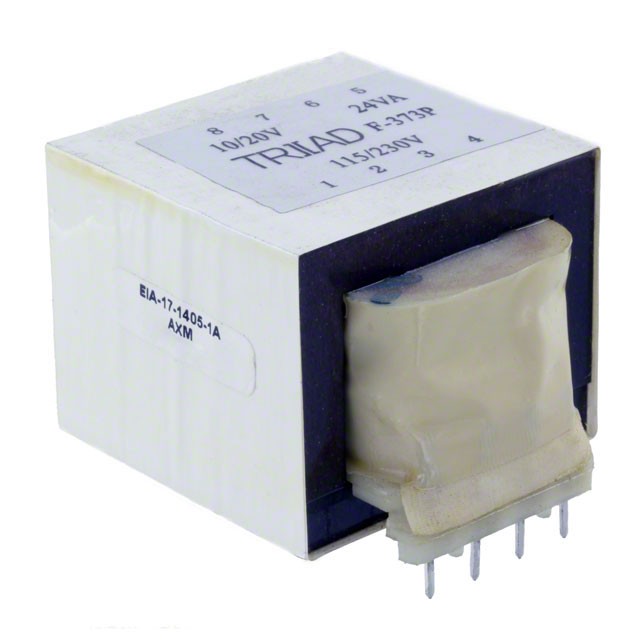

The Triad Magnetics F-373P is a laminated core power transformer designed for through-hole mounting. It features dual primary windings supporting 115V and 230V inputs, configured in parallel or series as needed. The secondary output provides 20.0Vct at 1.2A maximum current. With a rated power of 24VA, the unit utilizes PC pin termination for board integration. Physical dimensions are 57.15mm length by 41.28mm width, with a maximum installation height of 34.93mm.
Feature Summary
- Dual primary winding configuration allows flexible connection to 115V or 230V AC mains sources.
- Center-tapped secondary output design supports full-wave rectification circuits.
- Laminated core construction ensures stable magnetic performance under load.
Applications
- General purpose AC to DC power supply conversion
- Industrial control system power modules
- Consumer electronics internal power regulation
Procurement Notes
Verify the specific datasheet version against the manufacturer's official documentation before finalizing designs. Confirm that the PCB footprint matches the specified PC pin spacing and dimensions. Ensure input voltage requirements align with the dual primary winding capabilities. Check RoHS compliance status if environmental regulations apply to the target market.
Selection Notes
Select this component when a 24VA isolated transformer is required for low-power applications. The dual primary feature simplifies global voltage compatibility without changing hardware. Consider the physical size constraints relative to the 57.15mm x 41.28mm envelope. Verify thermal management needs based on the 1.2A secondary current rating.
Part Context
This part belongs to the Triad Magnetics power transformer family, characterized by laminated core technology and through-hole packaging. It serves as a fundamental isolation component in linear power supplies. The product line emphasizes reliability and standard electrical interfaces for widespread industrial adoption.
Replacement Considerations
Hammond Manufacturing 160H40 is a documented similar substitute. Verify electrical parameters and mechanical fit before swapping components.
