F1199BB02

Power Line Filter Modules Overview

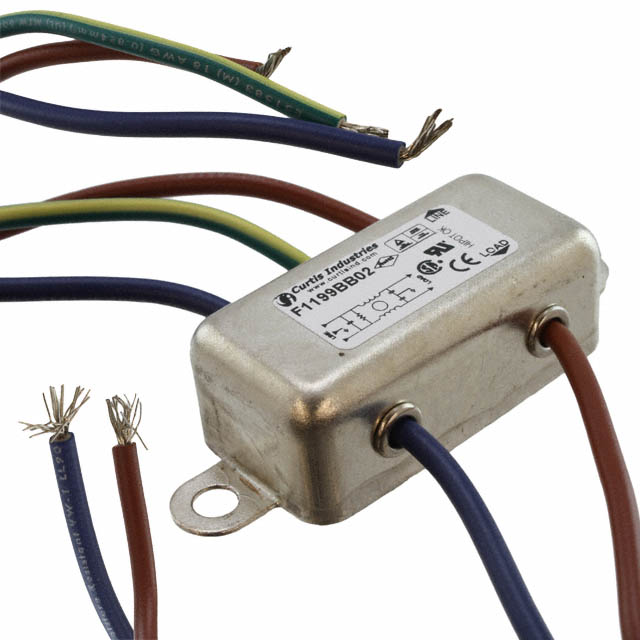

The Curtis Industries F1199BB02 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It supports a current rating of 2 A and operates at voltages up to 250 VAC at 50/60 Hz. The unit utilizes a single-stage filtering architecture with wire leads for connection. Leakage current is specified at 450 uA. This component serves as an electrical equivalent to the TE Connectivity 2EB3, providing direct compatibility in terms of current and mechanical specifications.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering for single-phase AC power lines
• Chassis mount design with integrated wire leads
• Direct electrical and mechanical equivalence to TE Connectivity 2EB3

Power Line Filter Modules Applications

• Industrial equipment requiring single-phase power line noise suppression
• Electronic systems needing chassis-mounted EMI filtration
• Replacement applications for TE Connectivity 2EB3 filters

Power Line Filter Modules Procurement Notes

Verify that the replacement application requires a single-stage filter with a 2 A current rating and 250 VAC voltage tolerance. Confirm chassis mounting compatibility and wire lead termination requirements. Ensure the leakage current specification of 450 uA meets system safety standards. Validate that the TE Connectivity 2EB3 equivalence is sufficient for the specific design constraints.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, chassis-mountable EMI filter with wire leads is required. It is suitable for designs needing a 2 A capacity and 250 VAC operation. Consider this part if a direct substitute for the TE Connectivity 2EB3 is needed. Ensure the application can accommodate the 450 uA leakage current characteristic.

Power Line Filter Modules Part Context

The F1199BB02 belongs to the Curtis Industries Power Line Filter Modules series. It is categorized as a single-phase EMC/EMI line filter. The component is functionally comparable to the TE Connectivity 2EB3, offering similar electrical and mechanical performance characteristics for power line conditioning.

Power Line Filter Modules Replacement Considerations

The Curtis Industries F1199BB02 is a confirmed direct electrical and mechanical equivalent to the TE Connectivity 2EB3. Both parts share identical current ratings and mechanical form factors.
