F1199BB10

Power Line Filter Modules Overview

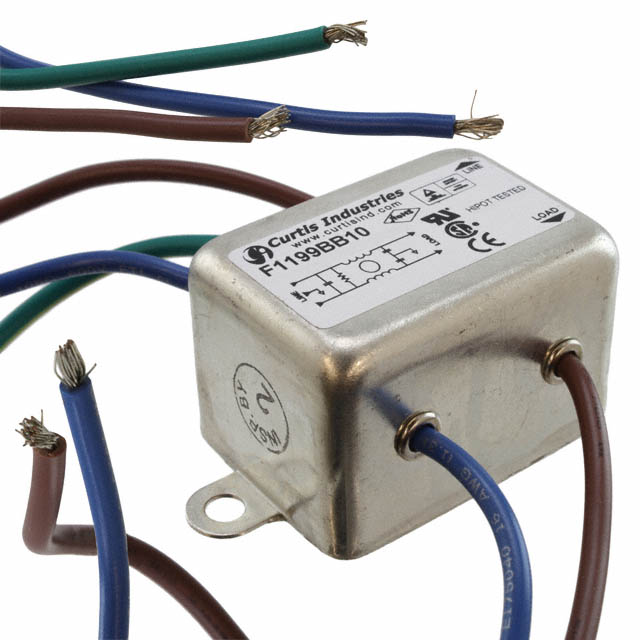

The Curtis Industries F1199BB10 is a single-stage EMI/EMC line filter designed for chassis mounting. It supports an operating frequency of 50/60Hz and handles a rated current of 10A at 250VAC. The component features wire leads for connection and carries CE, CSA, TUV, and UR approvals. Leakage current ranges from 0.25 to 0.45 mA.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount configuration with wire leads
• Certified for international safety standards

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment noise reduction
• Electronic device EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version when sourcing this component to ensure alignment with current regulatory certifications. Confirm that the wire lead specifications match your assembly requirements. Cross-reference the approval agency markings (CE, CSA, TUV, UR) against your target market regulations before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this model for applications requiring single-phase AC line filtering at standard utility frequencies. Ensure the 10A current rating and 250VAC voltage limit accommodate the system's electrical load. The chassis mount style dictates physical integration constraints within the enclosure design.

Power Line Filter Modules Part Context

This component belongs to Curtis Industries' power line filter module series. These filters are engineered to attenuate conducted electromagnetic noise on AC power lines. The F1199BB10 represents a standard solution for general-purpose industrial and commercial electronic equipment requiring basic EMI suppression.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without validating electrical parameters and mounting dimensions.

Power Line Filter Modules FAQ

What is the leakage current specification?

The leakage current is specified between 0.25 mA and 0.45 mA.

Is this filter suitable for DC applications?

No, the F1199BB10 is rated for 50/60Hz AC operation only.
