F1200AA20

Power Line Filter Modules Overview

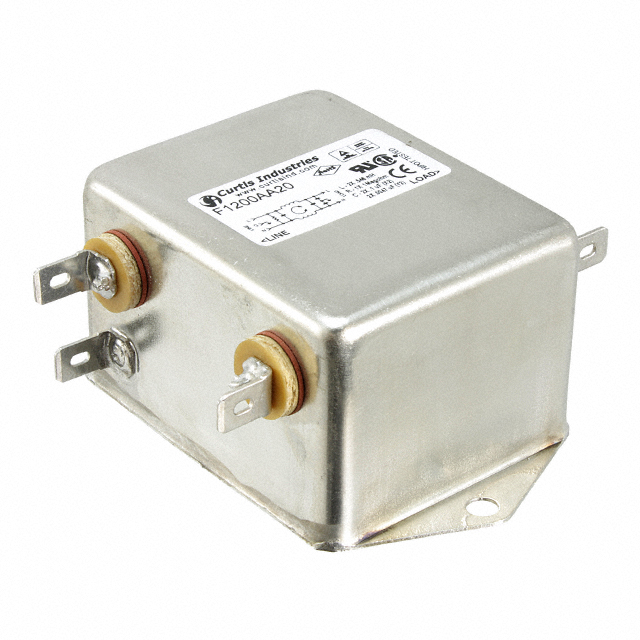

The Curtis Industries F1200AA20 is a single-phase EMI/EMC line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a maximum current rating of 20A at 50/60Hz. The component features a single-stage filtering configuration with quick connect terminals. Leakage current ranges from 0.40 to 0.75 mA. It complies with RoHS3 standards.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction
• Quick connect terminal interface

Power Line Filter Modules Applications

• Industrial equipment power entry
• Medical device power supplies
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific part number F1200AA20 against official Curtis Industries documentation to confirm the 20A current rating and 250VAC voltage specifications. Ensure compatibility with chassis mounting requirements and quick connect terminal types before procurement. Confirm RoHS3 compliance status if required by project regulations.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, chassis-mount EMI filter with a 20A current capacity is required. Consider the leakage current range of 0.40 to 0.75 mA for sensitive applications. Verify that the quick connect terminal style matches the existing wiring harness or PCB layout constraints.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1200 series of RFI power line filters. The series includes various current ratings and voltage configurations. The F1200AA20 specifically denotes the 20A variant within this general-purpose filtered module family.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical dimensions.
