F1299BB03

Power Line Filter Modules Overview

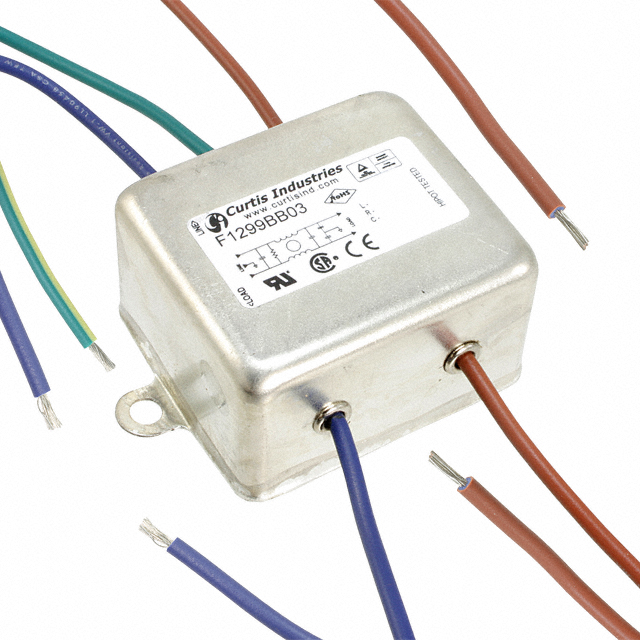

The Curtis Industries F1299BB03 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 3 A and operates at voltages up to 250 VAC within a 50/60 Hz frequency range. The unit features a single-stage filtering configuration with wire lead terminations. This component is classified under general-purpose applications and is currently in an active production status.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount construction with wire leads
• Certified for CE, CSA, TUV, and UR standards

Power Line Filter Modules Applications

• General purpose electronic equipment noise reduction
• Industrial control panel power input filtering
• Medical device power supply protection

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for detailed attenuation curves and impedance characteristics before finalizing integration. Confirm that the wire lead termination style matches the target circuit board or terminal block design. Ensure the chassis mounting holes align with the mechanical drawing provided by Curtis Industries to guarantee proper physical installation and grounding.

Power Line Filter Modules Selection Notes

Select this model when single-stage attenuation is sufficient for the application's EMI profile. The wire lead option simplifies assembly compared to screw terminals but requires secure strain relief. Verify that the 3 A current rating accommodates peak load requirements without thermal degradation. Consider the chassis mount form factor if space constraints preclude PCB-mounted alternatives.

Power Line Filter Modules Part Context

This component belongs to the F1299 series of power line filters from Curtis Industries. The series offers various configurations including different current ratings and termination styles. The F1299BB03 specifically denotes the 3 A variant with wire leads, distinguishing it from other models like the F1400AA03 which utilizes quick connect terminals and a two-stage design.

Power Line Filter Modules Replacement Considerations

The F1200AA03 serves as a comparable alternative within the same product family. Both share similar electrical ratings but differ in stage configuration and termination type. Ensure compatibility with existing mounting hardware and wiring methods when substituting.
