F1400BB06

Power Line Filter Modules Overview

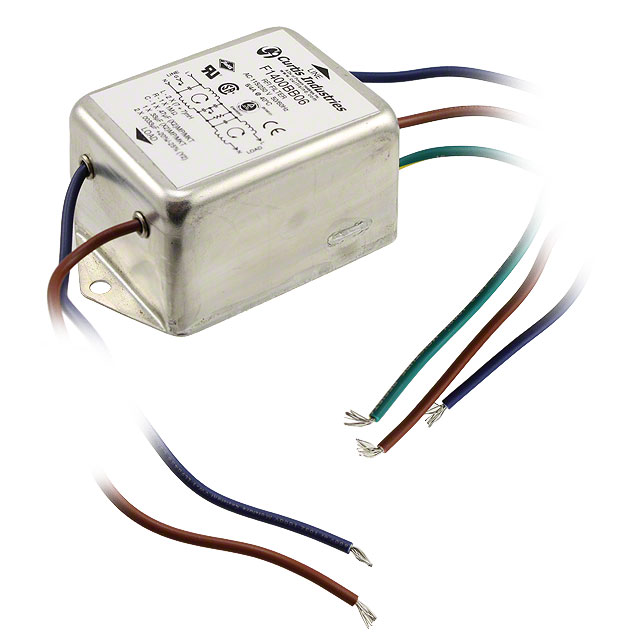

The Curtis Industries F1400BB06 is a single-phase EMC/EMI line filter module designed for power line noise suppression. It features a current rating of 6 A and operates at a voltage rating of 250 VAC with 50/60 Hz frequency support. The unit utilizes a two-stage filtering architecture to effectively attenuate electromagnetic interference. Electrical connections are provided via wire leads, facilitating integration into various electronic assemblies. Leakage current specifications range from 0.25 to 0.40 mA, ensuring compliance with safety standards for sensitive equipment applications.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Single-phase configuration for standard AC power lines
• Wire lead termination for direct circuit integration

Power Line Filter Modules Applications

• Power supply input stages requiring EMI suppression
• Electronic equipment chassis installations
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific part number F1400BB06 against official Curtis Industries documentation to confirm compatibility with your system requirements. Ensure that the 6 A current rating and 250 VAC voltage limits align with your operational parameters. Confirm that wire lead termination meets your assembly needs. Cross-reference datasheet specifications for leakage current and frequency response before procurement to guarantee performance integrity.

Power Line Filter Modules Selection Notes

Select this component when a single-phase EMI filter with a 6 A capacity is required. The two-stage design offers superior noise reduction compared to single-stage alternatives. Verify that the wire lead format suits your wiring infrastructure. Consider the leakage current range if strict isolation or safety regulations apply to your specific application environment.

Power Line Filter Modules Part Context

Curtis Industries manufactures electrical components including power line filters for industrial and commercial use. The F1400 series represents their line filter modules designed for electromagnetic compatibility. This specific model addresses noise issues in single-phase AC circuits, supporting reliable operation of connected electronics by mitigating conducted interference.

Power Line Filter Modules FAQ

What is the maximum operating voltage for the F1400BB06?

The maximum operating voltage rating is 250 VAC.

How many filtering stages does this module contain?

The F1400BB06 incorporates a two-stage filtering architecture.
