F3480T016 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists Curtis Industries. Its product description is LINE FILTER 480VAC 16A CHASS MNT. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for F3480T016
- Description：LINE FILTER 480VAC 16A CHASS MNT
- Series：F3480
- Mfr：Curtis Industries
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：16 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CE, UR
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for F3480T016
Power Line Filter Modules Overview

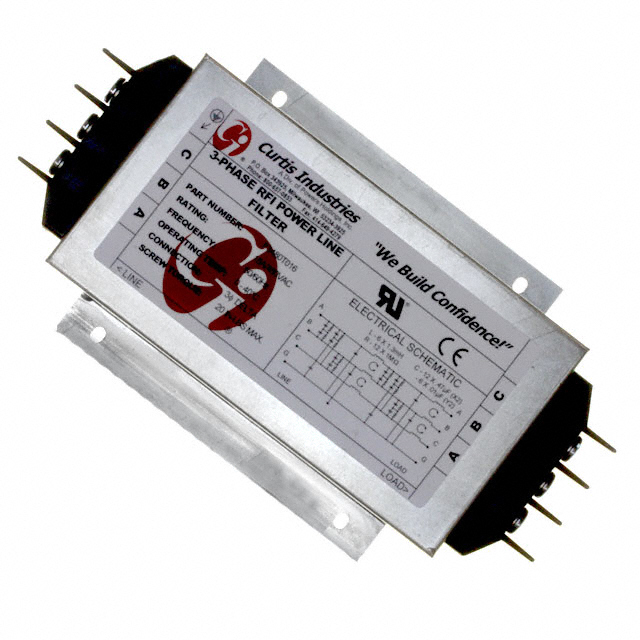

The Curtis Industries F3480T016 is a three-phase (Delta) EMC/EMI power line filter module designed for chassis mounting. It supports a rated current of 16 A and operates at voltages up to 480 VAC at 50/60 Hz. The unit features a two-stage terminal block configuration for robust electrical connections. Certified by CE and UR agencies, it serves as a general-purpose solution for mitigating electromagnetic interference in industrial power distribution systems.
Power Line Filter Modules Feature Summary
- Two-stage terminal block architecture for enhanced filtering performance
- Chassis mount design for secure installation in control panels
- CE and UR agency certifications ensuring regulatory compliance
Power Line Filter Modules Applications
- General purpose industrial power distribution
- Three-phase Delta system noise suppression
- EMC/EMI mitigation in machinery
Power Line Filter Modules Procurement Notes
Verify the specific voltage rating and phase configuration against the application requirements before ordering. Confirm that the chassis mounting dimensions align with the enclosure design. Ensure the 16 A current capacity meets the load demands. Check for updated certification marks on the latest production batches.
Power Line Filter Modules Selection Notes
Select this model for applications requiring certified EMI/RFI suppression in three-phase Delta configurations. Consider the chassis mounting style if panel space and vibration resistance are priorities. Evaluate the two-stage terminal block benefits for complex wiring setups compared to single-stage alternatives.
Power Line Filter Modules Part Context
This component belongs to the Curtis Industries Power Line Filter Modules category. It is engineered for industrial environments where electromagnetic compatibility is critical. The product integrates filtering capabilities directly into the power entry point, simplifying system design by reducing the need for external shielding or additional filter components.
Power Line Filter Modules Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and mounting hole patterns when considering generic equivalents.
