F5-120

Power Transformers Overview

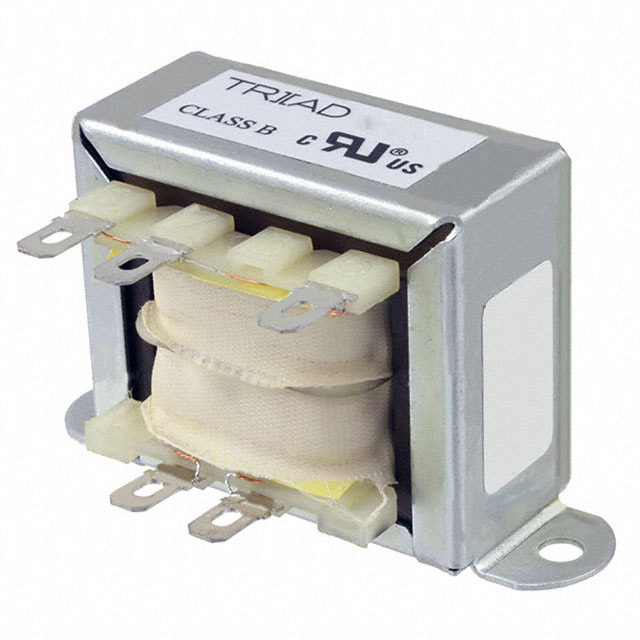

The Triad Magnetics F5-120 is a laminated core industrial power transformer with a 12 VA rating. It features a single 115V primary winding and a secondary output of 120.0V at 0.100A. The unit utilizes quick connect terminals with lugs for chassis mounting. Key electrical specifications include 2500VAC isolation voltage and operation at 50/60 Hz frequencies. Physical dimensions are approximately 2.81 inches in length, 1.38 inches in width, and 1.63 inches in height.

Power Transformers Feature Summary

• Chassis mount design with integrated lugs for secure installation
• Laminated core construction for efficient power transfer
• Quick connect termination style for simplified wiring

Power Transformers Applications

• Industrial control panels requiring isolated power supplies
• Equipment needing 115V to 120V step-up or isolation
• Low current electronic circuits within industrial machinery

Power Transformers Procurement Notes

Verify the specific terminal configuration matches your wiring harness, as this model uses quick connects with lugs rather than standard pins. Confirm that the 12 VA power rating and 0.100A secondary current meet your load requirements. Ensure the chassis mounting footprint aligns with your enclosure design before finalizing procurement.

Power Transformers Selection Notes

Select this component when a robust industrial-grade transformer with chassis mounting is required. The F5-120 is suitable for applications demanding high isolation voltage and reliable performance in control environments. Consider the physical size constraints and the specific need for lug-style connections versus PCB pins when comparing against other series options.

Power Transformers Part Context

This part belongs to the F5 series of industrial power transformers from Triad Magnetics. The series is characterized by laminated core designs and chassis mounting capabilities. These transformers are engineered for durability in industrial settings, providing stable voltage transformation for control circuits and low-power electronic systems.

Power Transformers Replacement Considerations

Direct substitutes may include other Triad Magnetics models within the F5 series with matching VA ratings and voltage configurations. Verify that any replacement maintains the same mounting style and terminal type to ensure mechanical compatibility without enclosure modifications.
