F5-16

Power Transformers Overview

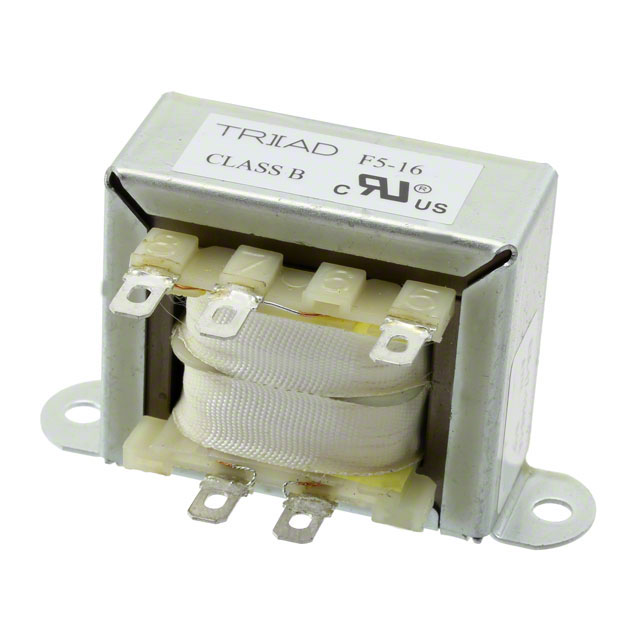

The F5-16 is a laminated core power transformer from Triad Magnetics, rated at 12VA. It features dual primary windings for 115VAC operation and a single secondary winding providing 16.0VCT at 0.8A. Designed for chassis mounting with quick connect terminals, it includes UL/cUL certification. The unit measures 2.81 inches in length, 1.38 inches in width, and 1.63 inches in height, weighing approximately 317.5 grams.

Power Transformers Feature Summary

• Chassis mount construction with quick connect terminals
• Dual primary winding configuration for standard voltage input
• Center-tapped secondary output design
• Laminated core technology for efficient power transfer

Power Transformers Applications

• Industrial control systems requiring isolated power
• Audio equipment power supplies
• General purpose AC to AC voltage transformation
• Electronic test and measurement instrumentation

Power Transformers Procurement Notes

Verify the specific terminal type required for your application, as this model utilizes quick connect lugs rather than through-hole pins. Confirm that the chassis mounting dimensions align with your enclosure space constraints. Ensure the 115V primary rating matches your local mains supply or requires a different variant for other voltages. Check for any updated regulatory compliance documentation if deploying in regions with strict environmental standards.

Power Transformers Selection Notes

Select this component when a 12VA capacity and 16VCT output are necessary for industrial or audio applications. The chassis mount style is suitable for fixed installations where vibration resistance is needed. Consider the physical size and weight limitations of your assembly. Verify that the quick connect interface is compatible with your wiring harness or PCB layout requirements before finalizing the design.

Power Transformers Part Context

This transformer belongs to Triad Magnetics' industrial power transformer lineup, specifically designed for robust performance in controlled environments. The F5 series typically offers standardized electrical ratings with flexible mounting options. This particular model emphasizes reliability and safety certifications for commercial and industrial use cases.

Power Transformers Replacement Considerations

Direct substitutes may include other Triad Magnetics models within the F5 series offering similar VA ratings and voltage configurations. Cross-reference mechanical dimensions and terminal types to ensure compatibility. Alternative manufacturers may offer comparable laminated core transformers, but verify insulation ratings and certification status.
