F56-220

Power Transformers Overview

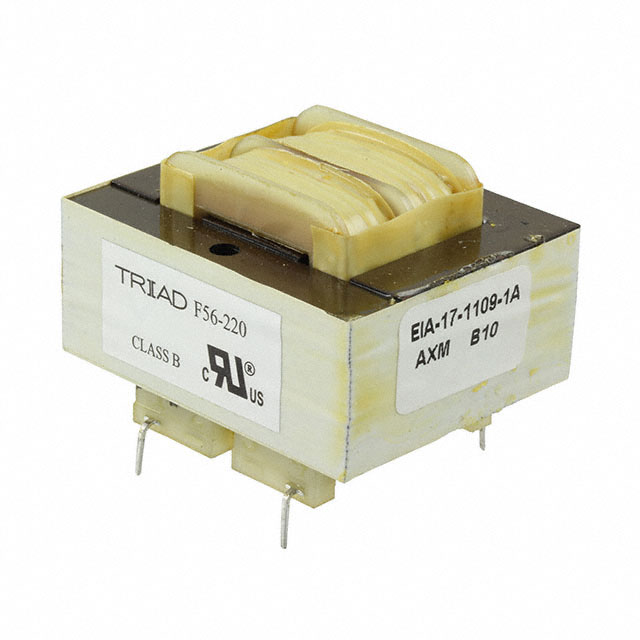

The Triad Magnetics F56-220 is a power transformer designed for board mount applications. It features a laminated core construction with a single primary winding rated for 115V input. The device provides dual secondary windings configured to deliver 56.0Vct at 0.220A. This component is UL and cUL recognized, ensuring compliance with safety standards for industrial control environments.

Power Transformers Feature Summary

• Board mount design utilizing split bobbin architecture
• Dual secondary winding configuration for versatile output
• Laminated core construction for efficient power transfer

Power Transformers Applications

• Industrial control systems requiring isolated power
• Electronic equipment needing 56V AC secondary supply
• Control panels utilizing PCB mounted transformers

Power Transformers Procurement Notes

Verify the specific suffix (e.g., -C2) against the target datasheet to confirm terminal configuration and mounting style. Ensure the 115V primary rating matches the source voltage. Confirm that the dual secondary current requirements align with the load specifications before procurement.

Power Transformers Selection Notes

Select this model when a 56Vct output at 220mA is required in a compact board-mount form factor. Consider the Split Pack series benefits for thermal management and isolation. Verify that the physical dimensions fit the PCB layout constraints and that the lead-free or standard termination options meet assembly requirements.

Power Transformers Part Context

This component belongs to the Triad Magnetics F56 series of Split Pack power transformers. These units are characterized by their split bobbin design which enhances isolation capabilities. The series offers various power ratings and voltage configurations tailored for industrial and commercial control applications requiring reliable AC power conversion.

Power Transformers Replacement Considerations

The ST-3-56 from Signal Transformer is listed as a similar substitute part number. Verify electrical equivalence and mechanical fitment before substitution.
