F66T3R120

Overview

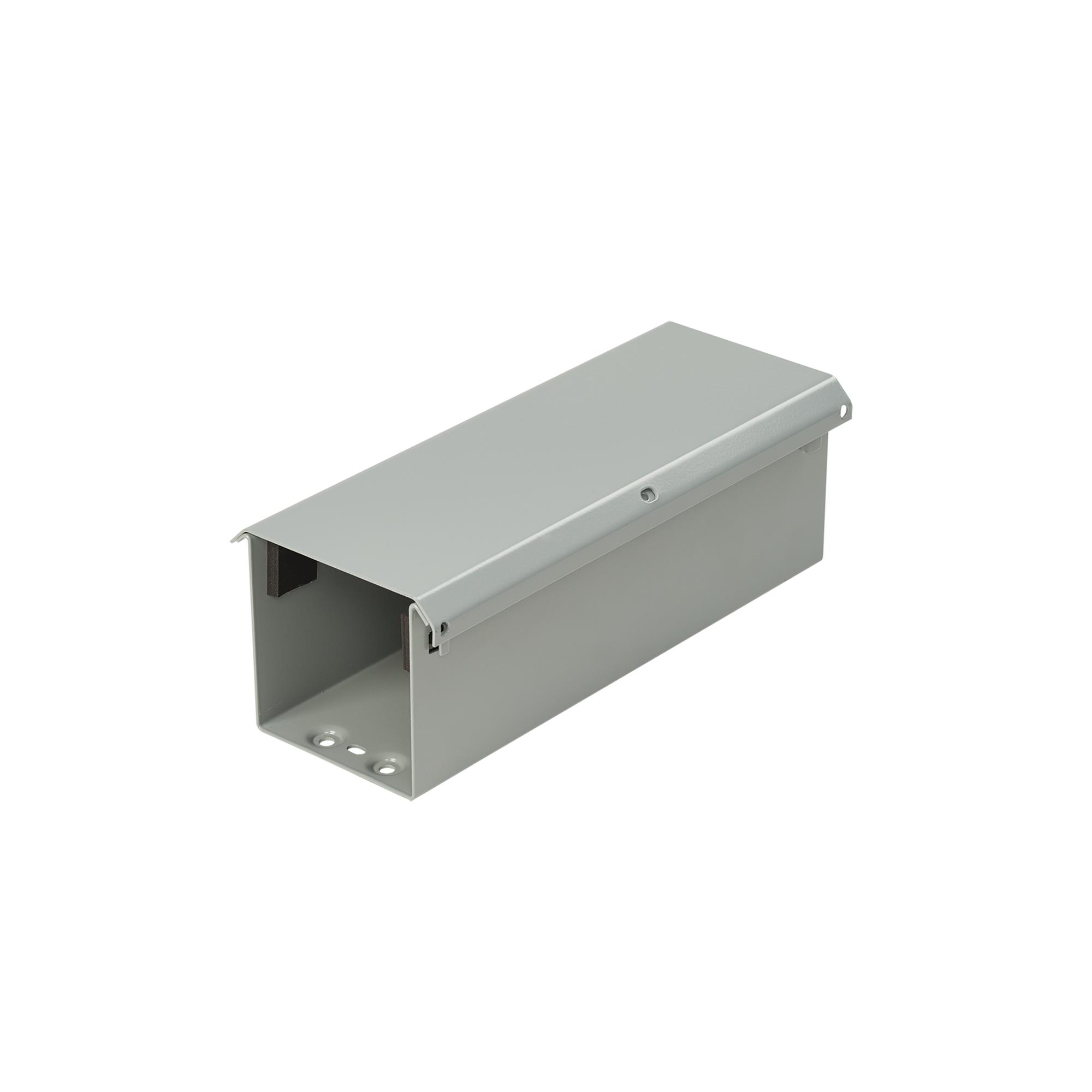

The Hoffman F66T3R120 is a straight section wireway designed for cable management. It features a 6.00 x 6.00 inch cross-section and a length of 120 inches. Constructed from 16/14 gauge steel, it includes a hinged cover with quick-release latches. The finish is ANSI 61 gray polyester powder painted galvanized steel. This component is rated NEMA Type 3R and UL 870, suitable for indoor and outdoor environments.

Feature Summary

• Lay-in design allows for easy wire installation without removing covers
• Hinged cover with quick-release latches facilitates access
• Galvanized steel construction with gray polyester powder paint
• NEMA Type 3R rating for protection against rain and sleet

Applications

• Enclosing wires and cables in corrosive indoor applications
• Protecting cables in dirty indoor environments
• Outdoor wireway runs requiring rain protection
• Industrial cable management systems

Procurement Notes

Verify the specific manufacturer part number against official nVent Hoffman documentation to ensure compatibility with existing wireway systems. Confirm that the 16/14 gauge steel specification matches project requirements for structural integrity. Ensure the ANSI 61 gray finish aligns with facility aesthetic standards. Check for any regional compliance certifications required for the installation site.

Selection Notes

Select this model when a 120-inch straight run is needed for 6x6 inch cable pathways. The lay-in feature is critical for installations where frequent access or simplified wiring is prioritized over sealed compartments. Consider the NEMA 3R rating for outdoor exposure. Evaluate the galvanized steel durability against the specific environmental aggressiveness of the deployment location.

Part Context

This component belongs to the Hoffman Lay-In Wireway series, specifically the Type 3R variant. It is part of a modular cable management system designed for industrial environments. The product line emphasizes ease of installation and maintenance through its hinged, lay-in design. It complements other Hoffman enclosures and fittings for comprehensive electrical infrastructure solutions.

Replacement Considerations

Compatible substitutes include other 6x6 inch NEMA 3R straight wireway sections from the same manufacturer. Verify dimensional accuracy and gauge thickness when considering alternative brands. Ensure the replacement maintains the hinged cover mechanism and quick-release latch functionality for consistent operational efficiency.

FAQ

What is the primary material composition of the F66T3R120?

It is constructed from 16/14 gauge steel with a galvanized finish and ANSI 61 gray polyester powder paint.

Does this wireway require tools to open the cover?

No, it features quick-release latches that allow for tool-free access to the interior.

Is this component suitable for outdoor use?

Yes, it is rated NEMA Type 3R, which provides protection against rain and sleet for outdoor applications.
