F66T3RCP

Overview

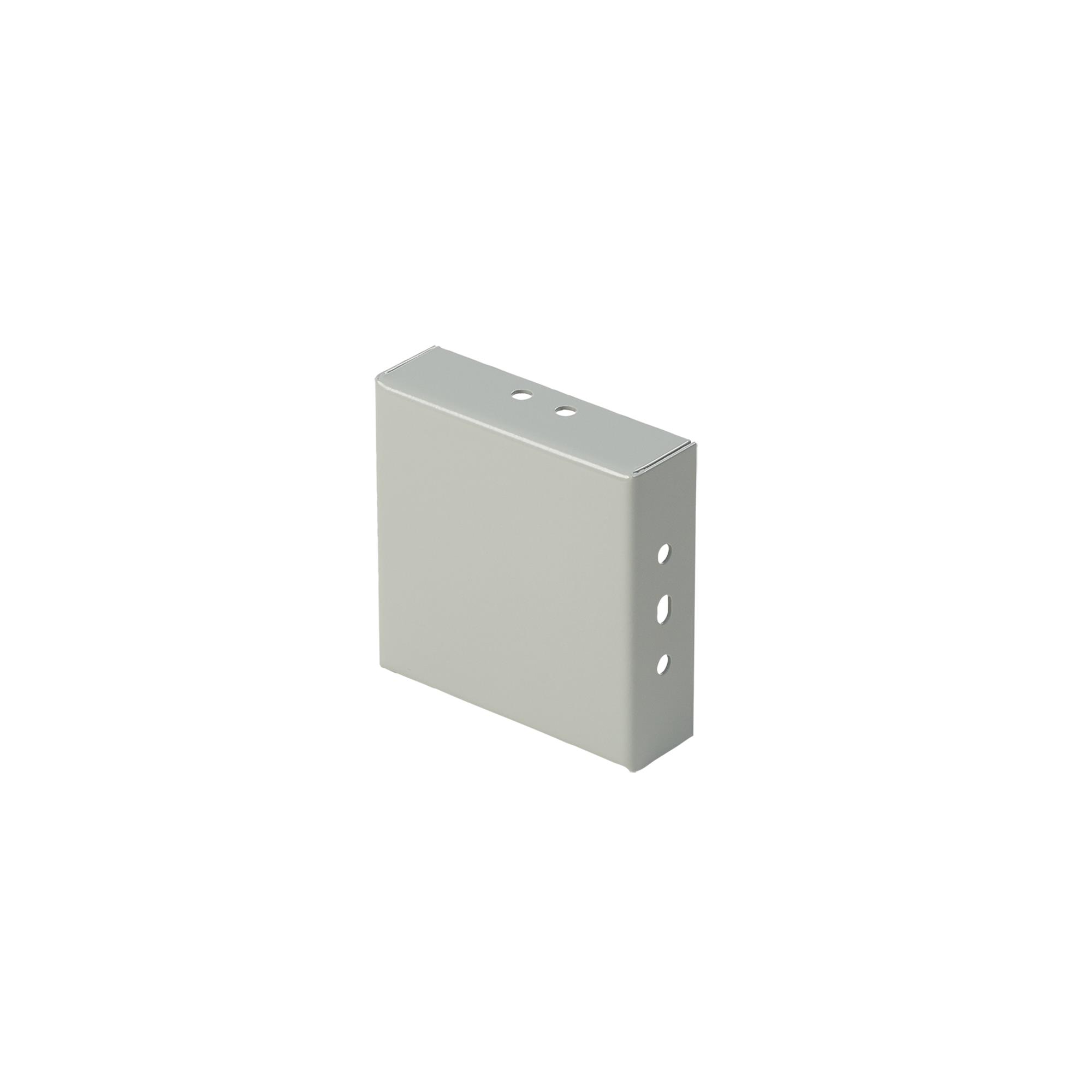

The Hoffman F66T3RCP is a closure plate designed for the Lay-In wireway series, specifically engineered to fit 6.00 x 6.00 inch trunking sections. Constructed from 16/14 gauge steel with a galvanized finish and ANSI 61 gray polyester powder paint, this component provides Type 3R protection for both outdoor and indoor environments. It carries UL 870 and CSA approvals, ensuring compliance with relevant safety standards for electrical installations requiring end-sealing capabilities.

Feature Summary

• Provides Type 3R environmental protection for wireway ends
• Compatible with 6.00 x 6.00 inch Lay-In wireway sections
• Features galvanized steel construction with gray powder coating

Applications

• Closing the end of a 6x6 inch wireway section or run
• Sealing wireway terminations in outdoor-indoor applications
• Completing wireway installations when used with U-connectors

Procurement Notes

Verify that the specific order matches the F66T3RCP part number to ensure compatibility with 6.00 x 6.00 inch Lay-In wireway systems. Confirm that Type 3R rating requirements align with the installation environment. Check for UL 870 and CSA approval markings on packaging or documentation to validate authenticity and regulatory compliance before finalizing procurement.

Selection Notes

Select this closure plate only for 6.00 x 6.00 inch wireway dimensions within the Lay-In series. Ensure the application requires Type 3R protection against rain, sleet, and falling debris. Verify that the installation method accommodates the use of U-connectors if sealing both sides or specific configurations are needed. Do not substitute with other sizes as dimensional accuracy is critical for proper fit.

Part Context

This component belongs to the nVent Hoffman Lay-In wireway system, which utilizes a tool-free installation approach for trunking sections. The F66T3RCP serves as an end-closure element, distinct from connectors or covers. It is part of a broader range of closure plates available in various sizes to match different trunking dimensions within the same product family.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific component. Direct replacement with the identical F66T3RCP part number is required to maintain dimensional compatibility and Type 3R rating specifications.
