F8890EIN

Overview

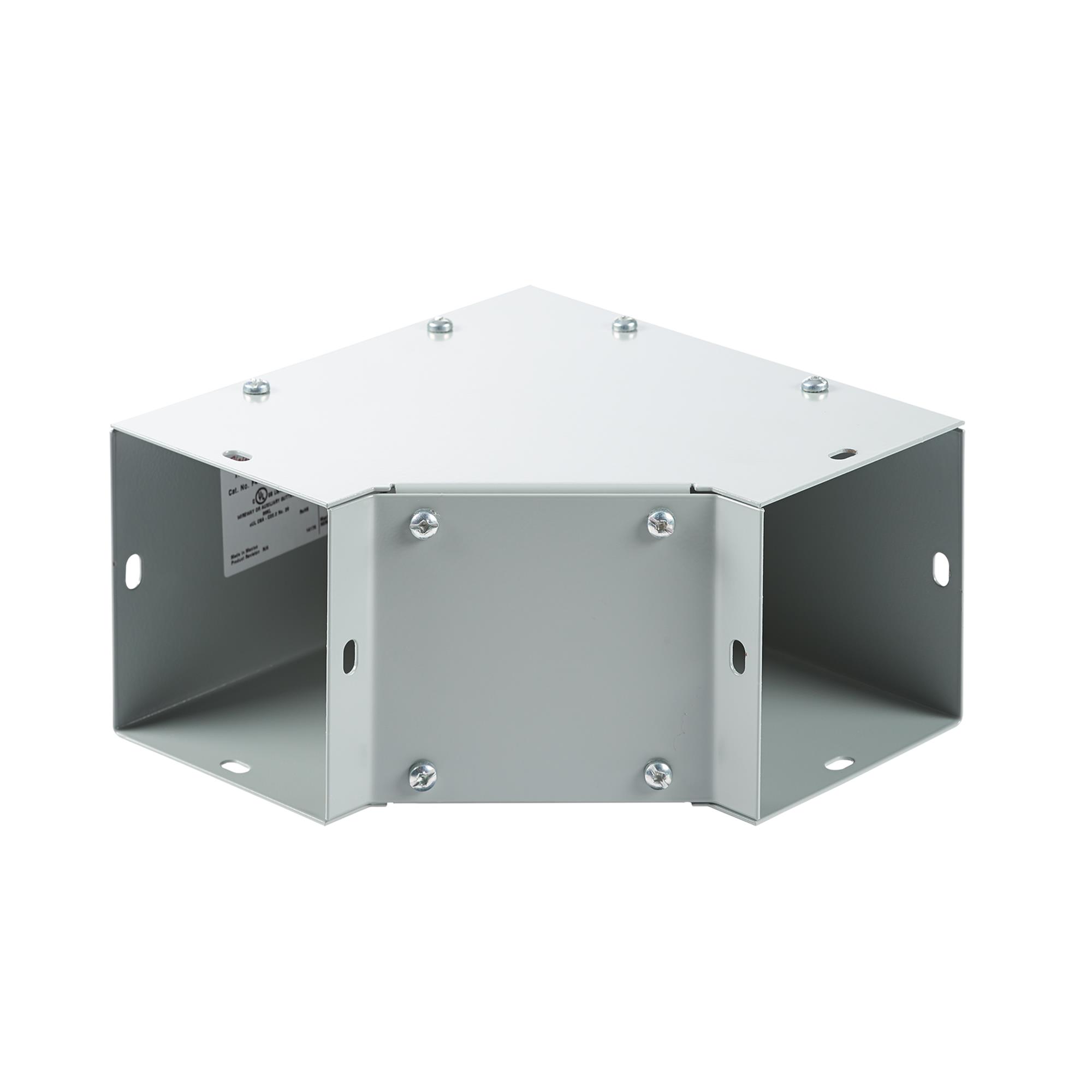

The F8890EIN is a 90-degree wireway elbow fitting manufactured by Hoffman Enclosures, Inc. Designed for use with 8.00 x 8.00 inch trunking systems, this component facilitates continuous cable runs with directional turns. It features an inside opening configuration and removable top and internal covers to allow access for wiring. The unit is constructed from mild steel with a gauge thickness of 14 ga and measures approximately 13.3 inches in length and 13.00 inches in width.

Feature Summary

• Provides a 90-degree turn for continuous wireway runs
• Features removable top and inside covers for cable access
• Designed for inside opening applications

Applications

• Industrial electrical installations requiring 90-degree wireway transitions
• Continuous cable routing systems with directional changes
• Enclosure wiring infrastructure maintenance and installation

Procurement Notes

Verify that the existing wireway system matches the required 8.00 x 8.00 inch dimensions before procurement. Confirm compatibility with the specific series (e.g., Lay-In) of the trunking being used. Ensure the mounting environment supports the mild steel construction and specified finish. Check local codes for NEMA Type 1 compliance requirements.

Selection Notes

Select this model specifically when a 90-degree turn with an inside opening is required for 8x8 inch wireways. Compare against other elbow configurations if outside openings or different angles are needed. Consider material durability and finish requirements relative to the installation environment. Ensure the component integrates seamlessly with adjacent straight sections and other fittings in the run.

Part Context

This component belongs to the Hoffman wireway accessories category, designed to complement standard industrial trunking systems. It serves as a critical junction element for directing cable pathways within electrical distribution networks. The product is part of a broader range of enclosure and wiring solutions provided by the manufacturer for commercial and industrial applications.

Replacement Considerations

Compatible substitutes include equivalent 8x8 inch 90-degree elbows from other manufacturers, such as nVent Hoffman variants or generic industrial wireway fittings meeting identical dimensional and structural specifications.
