F8890SEGV

Overview

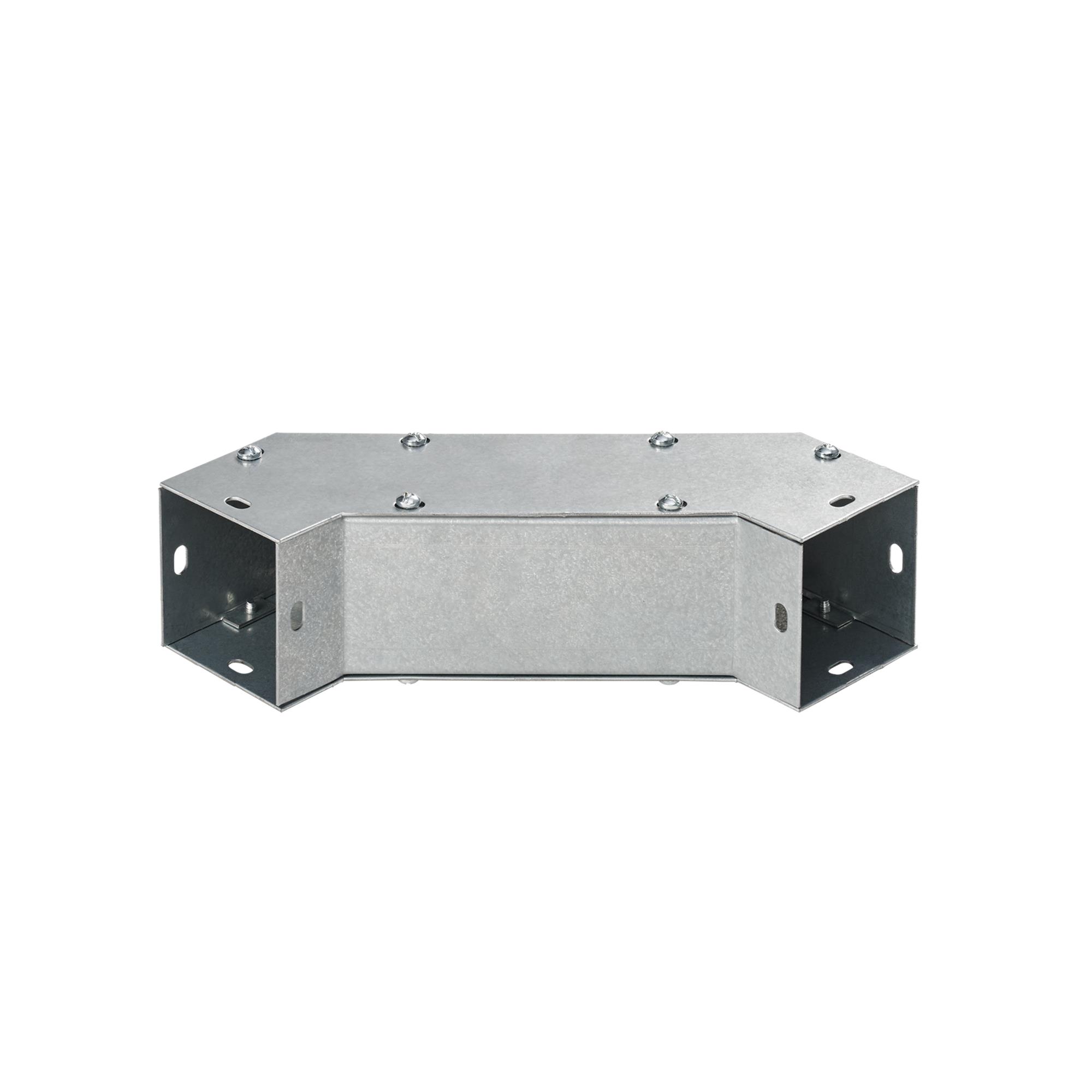

The F8890SEGV is an 8-inch by 8-inch sweep elbow wireway component manufactured by Hoffman Enclosures, Inc. Constructed from 14-gauge galvanized steel, it features a Type 1 indoor rating and complies with UL 870 standards. The unit provides a 90-degree bend with dimensions of 13.44 inches in length, 8 inches in width, and 8 inches in height. It utilizes a lay-in design to facilitate cable installation along the run.

Feature Summary

• Galvanized steel construction for corrosion resistance
• Lay-in design allows wires to be placed directly into the run
• Sweep geometry enables large-radius turns for cable protection

Applications

• Indoor electrical conduit routing
• Cable management in industrial control panels
• Supporting large-diameter cable bundles

Procurement Notes

Verify that the specified enclosure system matches the 8x8 inch nominal size required for this component. Confirm that the application environment remains strictly indoors, as the Type 1 rating does not support outdoor exposure. Ensure compatibility with existing Hoffman F40GF series wireway runs before finalizing procurement specifications.

Selection Notes

Select this model when a 90-degree directional change is required within an indoor wireway system. The 14-gauge thickness provides structural integrity for standard cable loads. Consider the lay-in feature for simplified maintenance and installation compared to traditional conduit systems requiring complex bending.

Part Context

This component belongs to the Hoffman F40GF series of lay-in wireways. It serves as a directional connector within a larger cable management infrastructure. The product is designed to integrate seamlessly with straight sections and other fittings from the same manufacturer to create continuous cable pathways.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional compatibility if considering alternative manufacturers for 8x8 inch sweep elbows.
