F88LE9KOKT

Overview

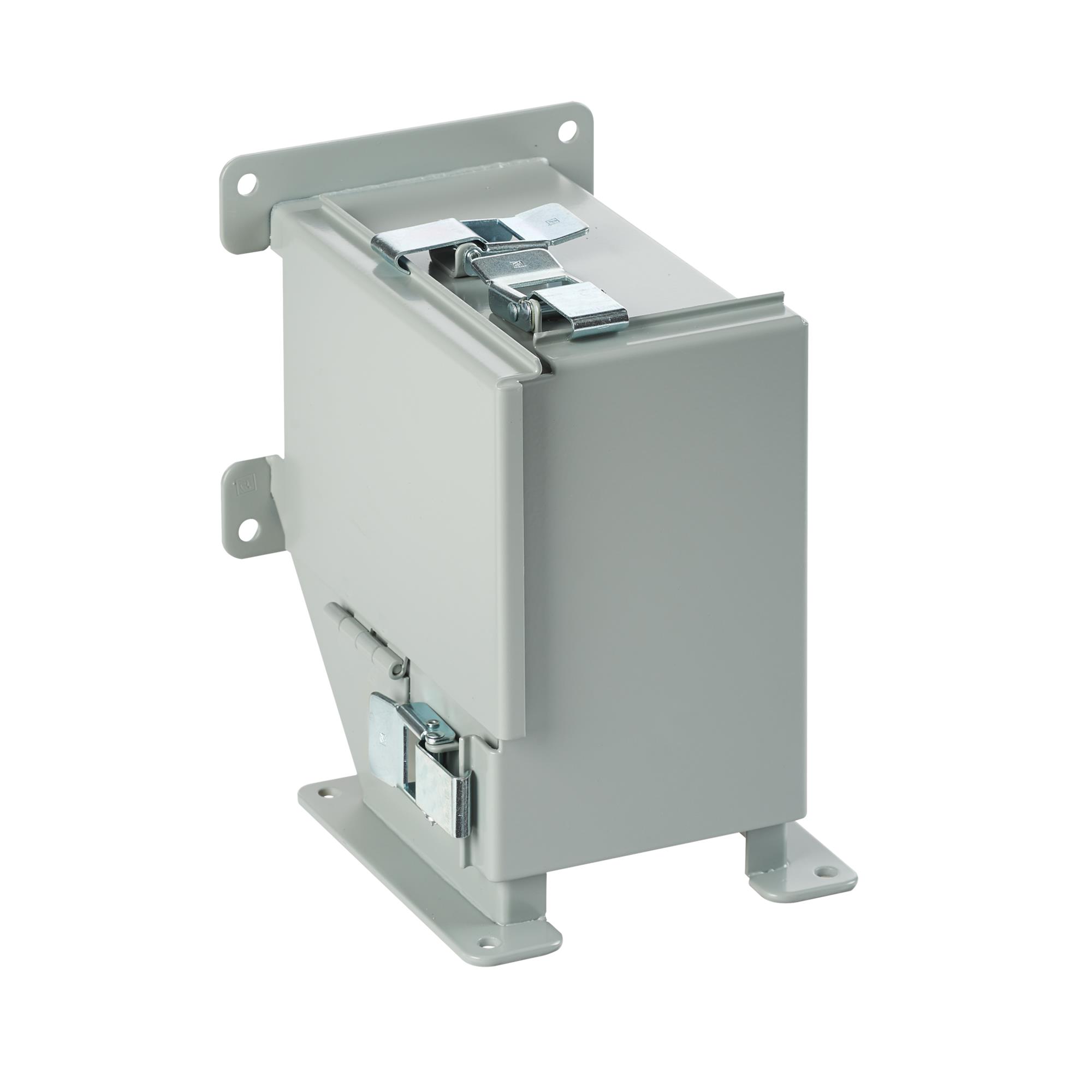

The Hoffman F88LE9KOKT is an 8-inch by 8-inch counterclockwise transposition section designed for use with NEMA Type 12 indoor lay-in wireway systems. Constructed from 14-gauge steel body and 10-gauge steel end flanges, it features a gray ANSI 61 polyester powder paint finish. Certified by the Canadian Standards Association, this fitting provides IP54 protection rating. It includes one flat sealing plate and has continuously welded seams that are ground smooth to ensure safety and durability in industrial electrical panel environments.

Feature Summary

• Counterclockwise 90-degree bend geometry for cable routing transitions
• Single-side opening configuration for accessible installation
• Smooth, rounded edges on all sections and fittings for operator safety
• Continuously welded and ground smooth seams for structural integrity

Applications

• NEMA Type 12 indoor electrical enclosures
• Lay-in wireway cable management systems
• Industrial control panel wiring infrastructure
• Electrical conduit and cable routing transitions

Procurement Notes

Verify that the required fitment matches the 8x8 inch series specifications. Confirm the counterclockwise orientation aligns with the panel design layout. Ensure the NEMA Type 12 rating meets the environmental protection requirements of the installation site. Check compatibility with existing steel wireway components to maintain consistent material properties and finish standards.

Selection Notes

Select this component when a counterclockwise directional change is required within an 8x8 inch wireway network. The 14-gauge body and 10-gauge flange construction supports standard mechanical loads for indoor applications. The gray polyester finish ensures visual consistency with other Hoffman F10 series components. Verify that the IP54 rating satisfies the specific dust and liquid ingress protection needs of the enclosure environment.

Part Context

This part belongs to the nVent Hoffman F10 series of wireway fittings. It is specifically engineered as a transposition section to facilitate cable routing changes within standardized lay-in wireway assemblies. The product line focuses on providing robust, pre-fabricated solutions for electrical panel organization, reducing on-site fabrication time while maintaining consistent quality and safety standards across the system.

Replacement Considerations

Ensure any substitute maintains the 8x8 inch internal dimensions and counterclockwise bend angle. Verify that the replacement part also offers NEMA Type 12 certification and compatible steel gauge construction. Confirm that the mounting interface and sealing plate specifications match the original design to preserve the IP54 protection rating.
