F88XGV

Overview

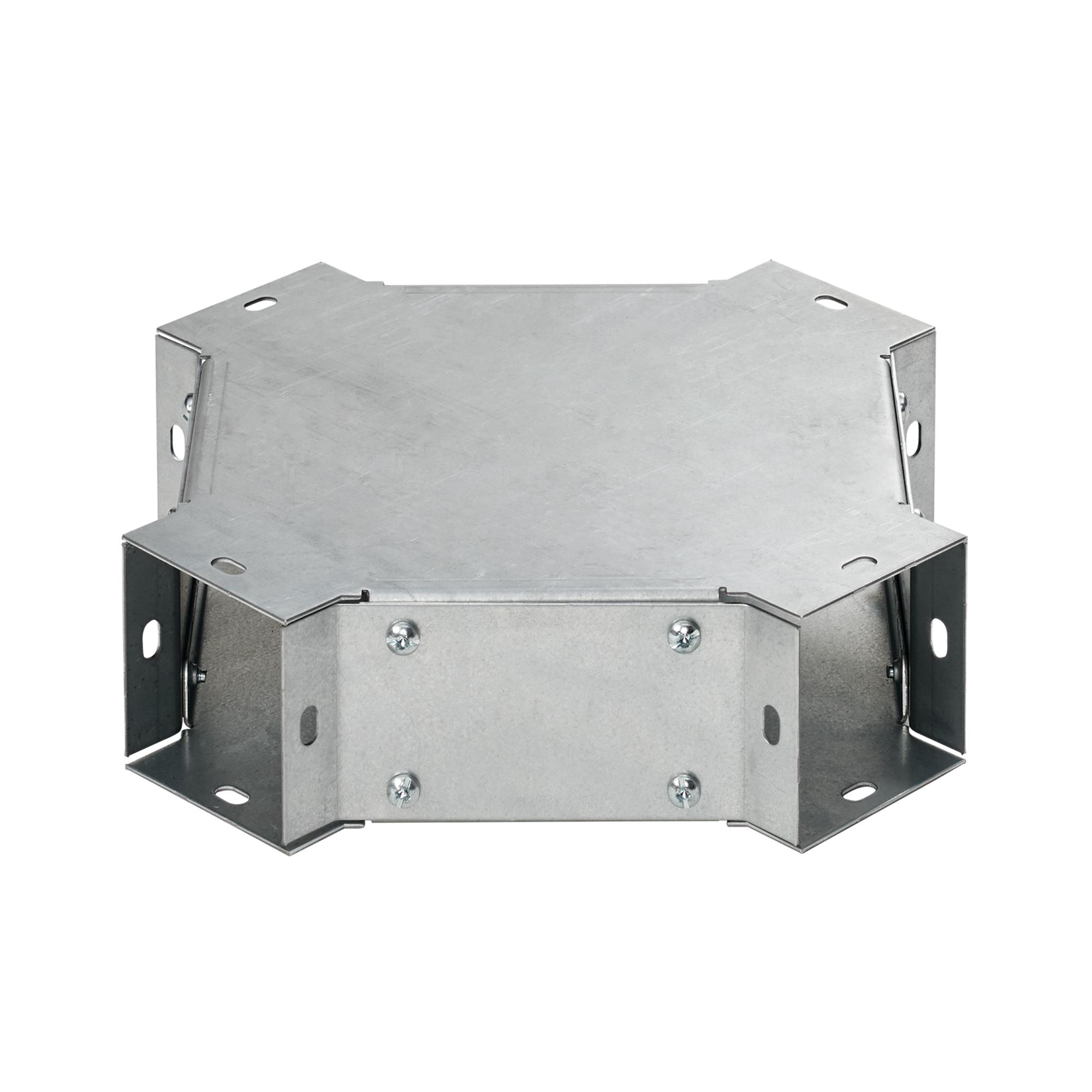

The Hoffman Enclosures Inc. F88XGV is an 8-inch by 8-inch cross fitting designed for the Lay-In wireway series. Constructed from galvanized steel, this component facilitates the combination of multiple trunking sections within cable management systems. It features a square profile with dimensions of 15.84 inches in length and width, and 8 inches in height. The fitting supports four-way branching configurations, allowing for structured routing of electrical cables in indoor environments.

Feature Summary

• Galvanized steel construction for corrosion resistance
• Designed for indoor cable management applications
• Supports four-branch structural integration

Applications

• Combining multiple wireway sections
• Indoor electrical cable routing
• Structured trunking network intersections

Procurement Notes

Verify that the specified application requires a four-way intersection configuration suitable for the 8x8 inch dimension. Confirm compatibility with existing galvanized steel trunking sections to ensure proper fit and structural integrity within the installed cable management system.

Selection Notes

Select this component when a four-way junction is required for 8-inch wide galvanized steel wireways. Ensure the installation environment is indoor, as the product specification indicates suitability for such conditions. Verify dimensional requirements match the 15.84 x 15.84 x 8 inch footprint.

Part Context

This part belongs to the Hoffman Lay-In series, which provides modular cable management solutions. The F88XGV serves specifically as a cross fitting, enabling complex routing layouts by connecting four perpendicular trunking runs. It complements other fittings like elbows and tees within the same series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
