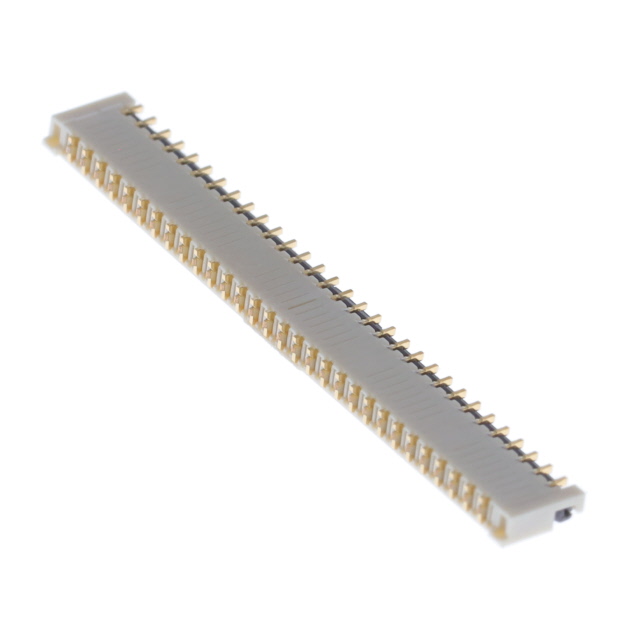

FB10S061JT1R6000

FB10S061JT1R6000 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 61POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FB10S061JT1R6000

• Description：CONN FPC BOTTOM 61POS 0.3MM R/A
• Series：FB10
• Mfr：JAE Electronics
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：61
• Pitch：0.012" (0.30mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.035" (0.88mm)
• Locking Feature：Flip Lock
• Cable End Type：Tabbed or Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Plastic
• Actuator Material：Plastic
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：-

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FB10S061JT1R6000
