FBA04VA450VB-00

Description：FERRITE BEAD 45 OHM AXIAL 1LN
Series：FB
Mfr：Taiyo Yuden
Package：Tray

SKU:feb228591d7f Category: Ferrite Beads and Chips Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FBA04VA450VB-00 is listed in the Chip Ferrite Bead range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FERRITE BEAD 45 OHM AXIAL 1LN. Review the specifications below when checking this part for your BOM.

Chip Ferrite Bead specifications for FBA04VA450VB-00

Description：FERRITE BEAD 45 OHM AXIAL 1LN
Series：FB
Mfr：Taiyo Yuden
Package：Tray
Filter Type：-
Number of Lines：1
Impedance @ Frequency：45 Ohms @ 100 MHz
Current Rating (Max)：7A
DC Resistance (DCR) (Max)：10mOhm
Ratings：-
Operating Temperature：-25°C ~ 85°C
Package / Case：Axial
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.138" Dia x 0.177" L (3.50mm x 4.50mm)
Features：-

Chip Ferrite Bead datasheet and documents for FBA04VA450VB-00

FBA04VA450VB-00

Chip Ferrite Bead Overview

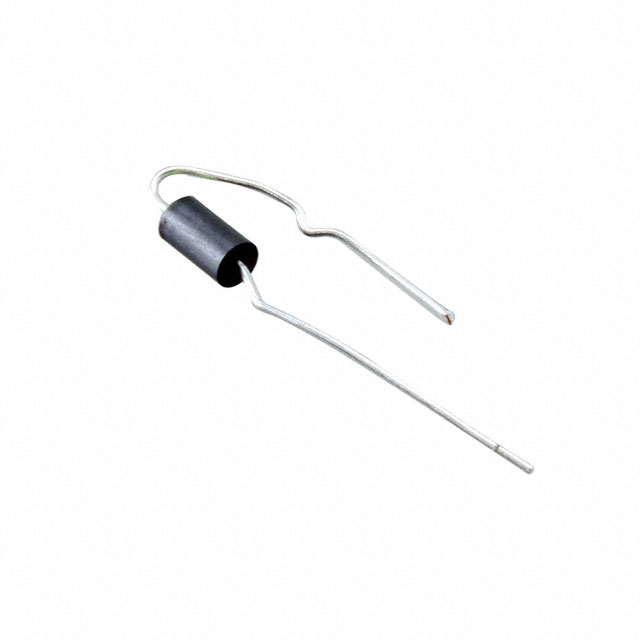

The FBA04VA450VB-00 is a leaded ferrite bead inductor from the Taiyo Yuden FB series. It features an axial straight termination style with a body diameter of 3.5 mm and length of 6.5 mm. The component provides a minimum impedance of 45 ohms measured at 100 MHz. It supports a maximum rated DC current of 7 A and has a maximum DC resistance of 10 milliohms. The operating temperature range spans from -25°C to +85°C.

Chip Ferrite Bead Feature Summary

Provides electromagnetic interference suppression through high-frequency impedance characteristics
Features axial straight leads for through-hole mounting applications
Designed for high-current handling capabilities up to 7 amperes

Chip Ferrite Bead Applications

Electromagnetic interference filtering in electronic circuits
Signal line noise suppression in power supplies
Common mode noise reduction in data transmission lines

Chip Ferrite Bead Procurement Notes

Verify component authenticity and datasheet alignment before integration, as this part is discontinued. Confirm that legacy inventory matches the specified 45 ohm impedance at 100 MHz and 7 A current rating. Ensure storage conditions preserve material integrity given the end-of-life status. Cross-reference replacement options if new production is required.

Chip Ferrite Bead Selection Notes

Select this component when axial ferrite beads are required for high-current noise suppression. The 45 ohm impedance at 100 MHz suits specific frequency attenuation needs. Verify physical dimensions fit the target PCB layout. Consider the discontinued status for long-term supply chain stability and evaluate alternative leaded ferrite beads with similar electrical parameters.

Chip Ferrite Bead Part Context

This component belongs to the Taiyo Yuden FB series of leaded ferrite bead inductors. These parts are designed for general-purpose electromagnetic interference suppression. The FB series offers various impedance values and current ratings to suit different circuit requirements. This specific model represents a standard axial configuration within that product family.
