FC-L04QB

Power Line Filter Modules Overview

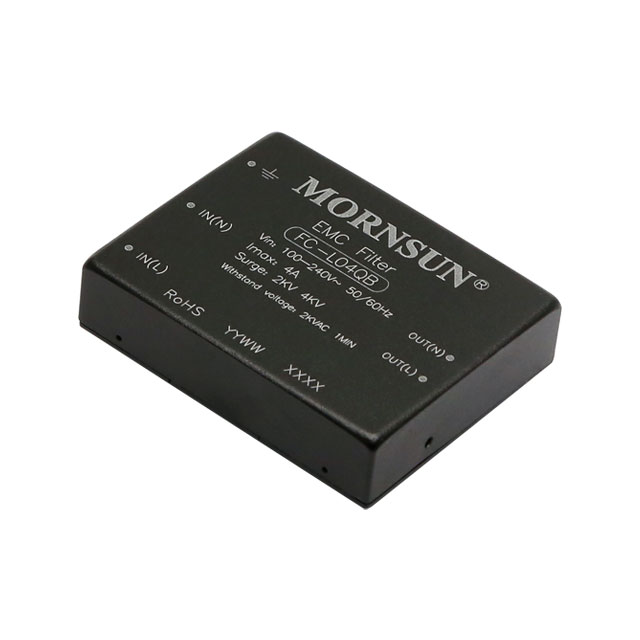

The FC-L04QB is an auxiliary EMC filter module manufactured by Mornsun America, LLC. Designed for industrial applications, it operates within a wide input voltage range of 0 to 430 VDC and supports an operating temperature range from -40°C to +105°C. The component utilizes a DIP package for mounting. Specific electrical parameters such as maximum power or current ratings are not provided in the available documentation.

Power Line Filter Modules Feature Summary

• Provides electromagnetic compatibility filtering for auxiliary circuits
• Supports wide DC input voltage ranges up to 430V
• Rated for extended industrial temperature environments

Power Line Filter Modules Applications

• Industrial AC/DC converter auxiliary stages
• DC-DC switching regulator input filtering
• General industrial power supply EMC mitigation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet requirements against your system's input voltage and thermal constraints. Confirm that the DIP package dimensions align with your PCB layout. Ensure the module meets the necessary regulatory standards for your target market before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this module when robust EMI suppression is required for high-voltage DC auxiliary inputs. Consider the wide temperature rating for harsh environments. Verify that the lack of specified current limits in public data does not conflict with your application's peak load requirements.

Power Line Filter Modules Part Context

This component belongs to the FC-LXXQB series of auxiliary devices from Mornsun. The series specializes in magneto-electric isolation technology and EMC filtering solutions for power conversion systems. It complements Mornsun's broader portfolio of AC/DC and DC/DC converters.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for the FC-L04QB are not available in the provided source material. Consult Mornsun technical support for direct equivalents if this specific model is unavailable.
