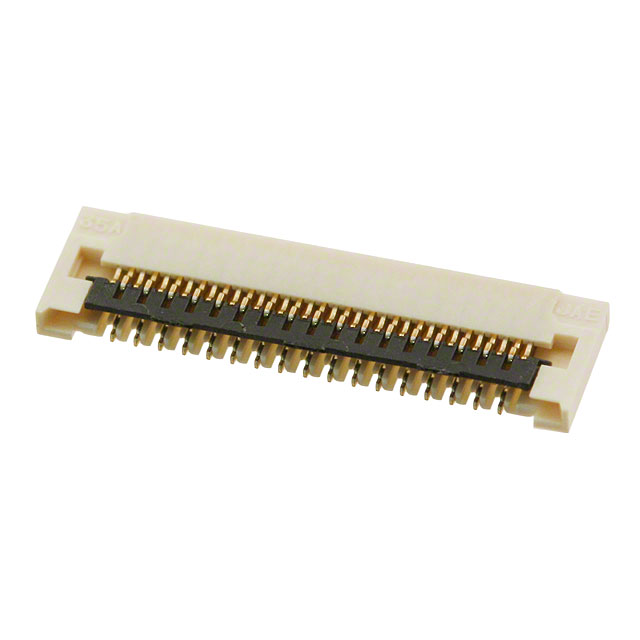

FF02S35SV1-R3000

FF02S35SV1-R3000 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 35POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FF02S35SV1-R3000

• Description：CONN FPC BOTTOM 35POS 0.3MM R/A
• Series：FF02S
• Mfr：JAE Electronics
• Package：Tape & Reel (TR)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：35
• Pitch：0.012" (0.30mm)
• Termination：Solder
• FFC, FCB Thickness：0.12mm
• Height Above Board：0.035" (0.88mm)
• Locking Feature：Flip Lock
• Cable End Type：Straight
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FF02S35SV1-R3000
