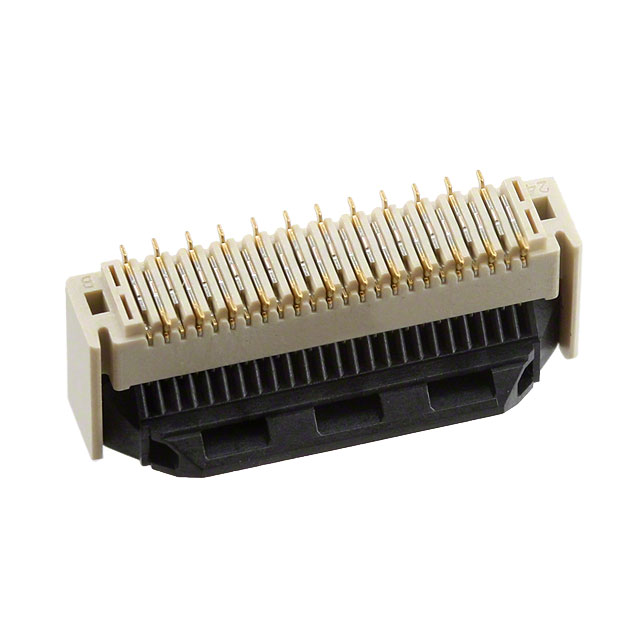

FFC, FPC (Flat Flexible) Connector Assemblies FH40-24S-0.5SV product image

FH40-24S-0.5SV

$1.99
  • Description：CONN FPC VERT 24POS 0.5MM SMD
  • Series：FH40
  • Mfr：Hirose Electric Co Ltd
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a149defb702a Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

FH40-24S-0.5SV is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FPC VERT 24POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH40-24S-0.5SV

  • Description：CONN FPC VERT 24POS 0.5MM SMD
  • Series：FH40
  • Mfr：Hirose Electric Co Ltd
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • Flat Flex Type：FPC
  • Mounting Type：Surface Mount
  • Connector/Contact Type：Contacts, Vertical - 1 Sided
  • Number of Positions：24
  • Pitch：0.020" (0.50mm)
  • Termination：Solder
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.228" (5.80mm)
  • Locking Feature：Flip Lock
  • Cable End Type：Tabbed
  • Contact Material：Phosphor Bronze
  • Contact Finish：Gold
  • Housing Material：Liquid Crystal Polymer (LCP)
  • Actuator Material：Liquid Crystal Polymer (LCP)
  • Features：-
  • Voltage Rating：50V
  • Operating Temperature：-40°C ~ 105°C
  • Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH40-24S-0.5SV

FH40-24S-0.5SV
