FMAB-N7PK-1646

Power Line Filter Modules Overview

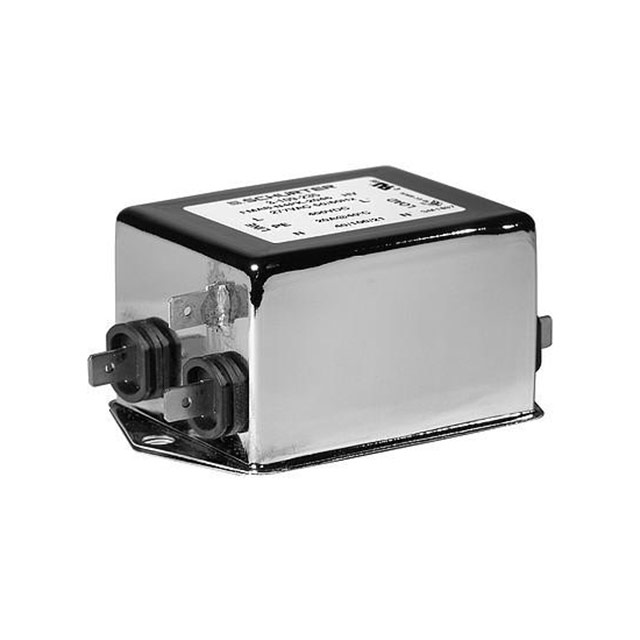

The SCHURTER FMAB-N7PK-1646 is a high-voltage, single-phase, one-stage AC power line filter designed for industrial applications. It features a rated voltage of 277 VAC and a current rating of 16 A. The component utilizes M8 screw terminals for secure connection and operates within a temperature range of -40°C to +100°C. This filter provides electromagnetic compatibility (EMC) protection in environments requiring robust performance under high voltage conditions.

Power Line Filter Modules Feature Summary

• High-voltage capability rated for 277 VAC operation
• Single-phase, one-stage EMC filtering architecture
• Robust thermal performance suitable for extreme temperatures
• Secure M8 screw terminal connection interface

Power Line Filter Modules Applications

• Industrial machinery power systems
• High-voltage AC equipment EMC suppression
• Harsh environment electronic installations

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating and terminal type against your system requirements before procurement. Confirm that the 277 VAC rating aligns with your operational standards. Ensure the M8 screw terminal pitch matches your wiring harness or PCB layout constraints. Check for any specific environmental certifications required for your deployment region.

Power Line Filter Modules Selection Notes

Select this model when a single-phase filter is required for circuits operating at 277 VAC. The 16 A current capacity suits moderate-to-high power loads. Consider the M8 terminal style if through-hole or screw-down connections are preferred over quick-connect types. Evaluate the -40°C to +100°C range against your ambient operating conditions.

Power Line Filter Modules Part Context

This component belongs to the SCHURTER FMAB series of power line filters. The series offers various configurations for different voltage and current ratings. The N7PK suffix typically denotes specific terminal and housing variations within the FMAB family, tailored for high-voltage industrial use cases.

Power Line Filter Modules Replacement Considerations

No direct public substitute part numbers are confirmed for this specific high-voltage variant. When replacing, ensure the new component matches the 277 VAC rating, 16 A current, and M8 terminal configuration. Verify that the replacement maintains equivalent attenuation characteristics and physical dimensions.
