FMAC-0924-0610

Power Line Filter Modules Overview

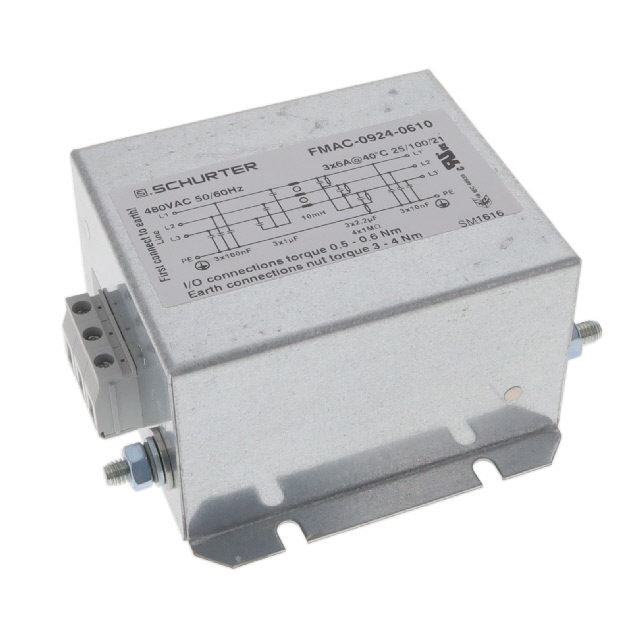

The FMAC-0924-0610 is a three-phase single-stage EMC/EMI line filter manufactured by Schurter Inc. It supports a maximum current of 6 A and operates at voltages up to 480V AC or 520V AC with a frequency range of 50/60Hz. The unit utilizes terminal block connections for secure electrical interfacing. Designed for industrial environments, it provides effective noise suppression in power distribution systems while maintaining compliance with relevant electromagnetic compatibility standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for efficient noise attenuation
• Terminal block connection method for reliable wiring
• Supports dual voltage ratings of 480V AC and 520V AC

Power Line Filter Modules Applications

• Industrial power distribution networks
• Electromagnetic interference suppression in three-phase systems
• Compliance enhancement for sensitive electronic equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement (480V vs 520V) against the application datasheet before procurement. Confirm that the terminal block interface matches existing wiring infrastructure. Ensure the 6A current capacity aligns with the load requirements. Check for updated RoHS compliance documentation if required by local regulations.

Power Line Filter Modules Selection Notes

Select this model when a compact single-stage solution is sufficient for three-phase noise reduction. The terminal block interface suits applications requiring robust mechanical connections. Consider the 6A limit for lower-power industrial loads. Evaluate space constraints as single-stage filters may require larger footprints compared to multi-stage alternatives for equivalent attenuation.

Power Line Filter Modules Part Context

This component belongs to the FMAC series of power line filters from Schurter. The series offers various configurations for different current ratings and installation types. The FMAC-0924-0610 specifically addresses three-phase applications with moderate current demands, providing a balance between performance and physical size for standard industrial enclosures.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
