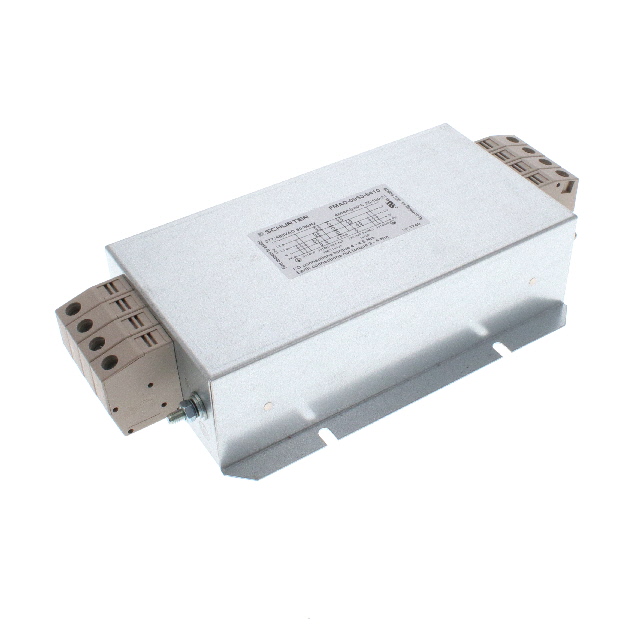

FMAD-0953-6410

Power Line Filter Modules Overview

The FMAD-0953-6410 is a single-stage EMC/EMI line filter module designed for three-phase (Wye) systems with a neutral conductor. It supports rated AC voltages of 277V and 480V at 50/60Hz frequencies. The unit provides a continuous current rating of 64A and utilizes terminal block connections for installation. Certified by cURus and VDE, this chassis-mount component ensures electromagnetic compatibility in industrial power distribution environments.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for three-phase Wye configurations
• Terminal block connection method for secure wiring
• Compliance with cURus and VDE safety standards

Power Line Filter Modules Applications

• Industrial machinery power supply conditioning
• Three-phase motor drive input filtering
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (277V or 480V) required for your application against the datasheet specifications. Confirm that the terminal block interface matches your existing wiring infrastructure. Ensure the 64A current capacity aligns with the load requirements to prevent thermal overload during operation.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for EMI suppression in three-phase Wye systems. Consider the chassis-mount form factor for panel integration. Verify that the terminal block termination style suits the available cable gauge and connection tools within the assembly environment.

Power Line Filter Modules Part Context

This component belongs to Schurter's power line filter module series, engineered for robust electromagnetic interference reduction. It addresses noise propagation in sensitive electronic equipment powered by three-phase networks. The design prioritizes compact integration while maintaining high current handling capabilities for industrial duty cycles.

Power Line Filter Modules Replacement Considerations

Consult official Schurter documentation for direct cross-references. Ensure any substitute maintains the 64A rating, 277/480VAC compatibility, and terminal block configuration to preserve system integrity.
