FMAM63019

RF Amplifiers Overview

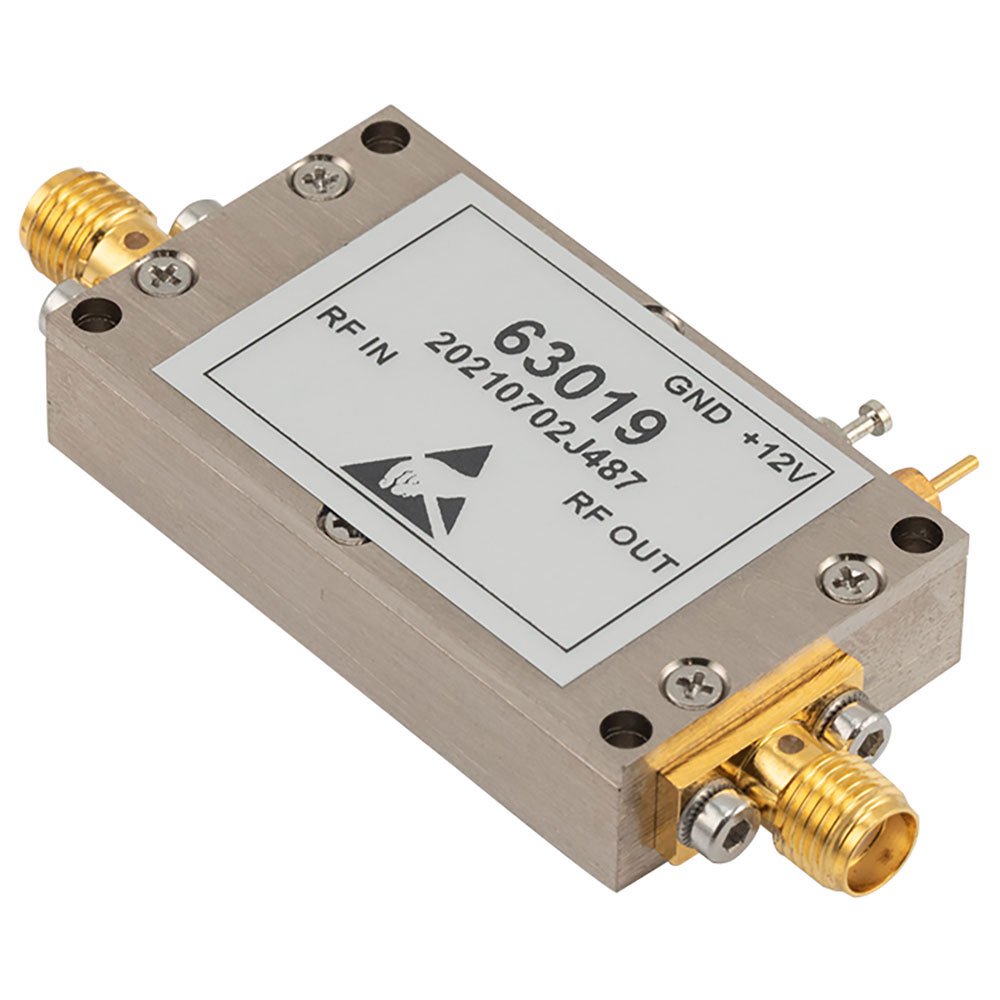

The FMAM63019 is an input-protected low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and provides a gain of 40 dB. The device features a noise figure of 1.2 dB and a 1 dB compression point (P1dB) of 14 dBm. It utilizes SMA connectors for interfacing. Electrical specifications include a third-order intercept point (OIP3) of 35 dBm. Power requirements consist of a supply voltage ranging from 2.7 V to 28 V and a supply current between 18 mA and 700 mA.

RF Amplifiers Feature Summary

• Input protection circuitry integrated into the amplifier design
• Low noise figure specification suitable for sensitive signal reception
• Wide operating voltage range supporting diverse power environments

RF Amplifiers Applications

• Radar systems requiring high gain and low noise performance
• Wireless communication infrastructure components
• Test and measurement equipment front ends

RF Amplifiers Procurement Notes

Verify the specific pinout configuration and connector orientation against the official datasheet before integration. Confirm that the supply voltage and current limits align with the target system's power delivery capabilities. Ensure environmental conditions remain within the specified operational parameters to maintain signal integrity and device longevity.

RF Amplifiers Selection Notes

Select this component when a wide bandwidth from 2 GHz to 6 GHz is required alongside high gain. The input protection feature offers robustness against potential signal anomalies. Consider the SMA interface compatibility with existing board layouts. Evaluate the power consumption profile against thermal management constraints in the final assembly.

RF Amplifiers Part Context

This model belongs to the Fairview Microwave series of SMA low noise amplifiers. These units are designed for applications demanding consistent performance across the UHF and SHF bands. The product line emphasizes ease of integration through standardized interfaces and reliable electrical characteristics for professional RF engineering tasks.

RF Amplifiers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.

RF Amplifiers FAQ

What is the maximum supply voltage for the FMAM63019?

The maximum operating supply voltage is 28 V.

Does the FMAM63019 include input protection?

Yes, the amplifier includes integrated input protection circuitry.
