FMBB-34MF-3030

Power Line Filter Modules Overview

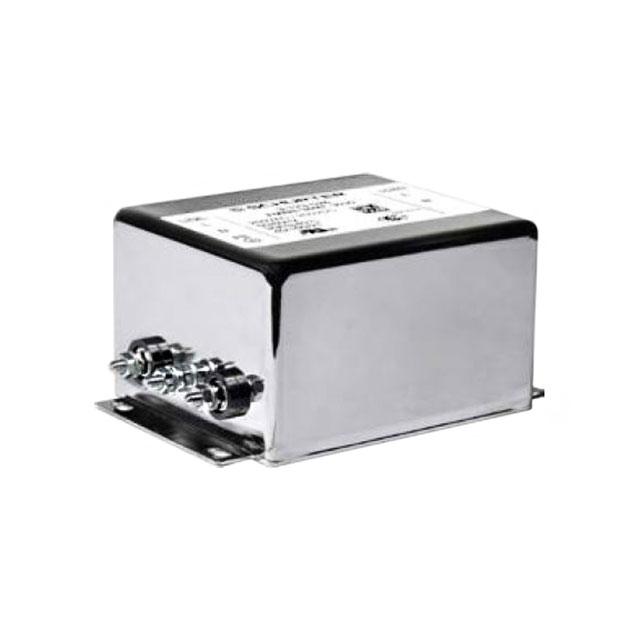

The SCHURTER FMBB-34MF-3030 is a single-phase, two-stage power line filter module designed for chassis mounting. It features screw termination and supports voltage ratings of 125 VAC and 250 VAC with a current rating of 30 A. The unit operates at frequencies of 50 Hz and 60 Hz. Certified by UL, CSA, VDE, and EN standards, it provides broadband attenuation suitable for general-purpose applications requiring robust electromagnetic interference suppression.

Power Line Filter Modules Feature Summary

• Two-stage broadband attenuation design for effective noise reduction
• Chassis mount construction with screw termination for secure installation
• Compliance with major international safety and EMC certification standards

Power Line Filter Modules Applications

• Industrial machinery power input stages
• Medical equipment power conditioning
• General purpose electronic systems requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing chassis mounting holes and terminal configurations. Confirm that the required certifications (UL, CSA, VDE, EN) meet the regulatory requirements of the final application environment before procurement.

Power Line Filter Modules Selection Notes

Select this component when high current capacity up to 30 A is required alongside significant attenuation performance. The two-stage architecture offers superior filtering compared to single-stage alternatives. Verify that the chassis mounting style aligns with the system enclosure design and that screw terminals are preferred over PCB or quick-connect options for the specific wiring infrastructure.

Power Line Filter Modules Part Context

This component belongs to the FMBB series, which consists of single-phase, two-stage filters rated between 8 A and 25 A in standard configurations. The FMBB-34MF-3030 represents a high-current variant within this family, maintaining the series' characteristic broadband attenuation capabilities while accommodating higher load currents for demanding industrial and commercial power applications.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Cross-reference current ratings, voltage limits, and physical footprint dimensions to ensure mechanical and electrical compatibility without compromising certification status.
