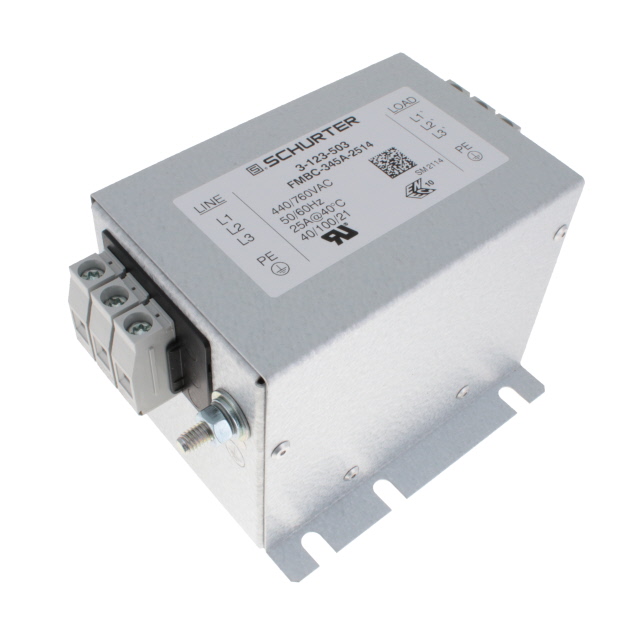

FMBC-345A-2514

$97.47

Description：LINE FILTER 760VAC 25A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box

SKU:4f4899c4e66e Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-345A-2514 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 760VAC 25A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-345A-2514

Description：LINE FILTER 760VAC 25A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：25 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-345A-2514

FMBC-345A-2514

Power Line Filter Modules Overview

The FMBC-345A-2514 is a three-phase power line filter module from the Schurter FMBC EP series. It features a nominal AC voltage rating of 760V and a current capacity of 25A. The unit utilizes a terminal block termination style and is supplied in box packaging. Designed for electromagnetic compatibility, it operates within a temperature range of -40°C to 100°C and complies with RoHS standards.

Power Line Filter Modules Feature Summary

Provides electromagnetic interference reduction for three-phase power lines
Features robust terminal block connections for secure installation
Operates reliably across an extended industrial temperature range

Power Line Filter Modules Applications

Industrial machinery power supply filtering
Three-phase motor drive noise suppression
Heavy-duty equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-345A-2514 against official Schurter documentation to confirm technical specifications. Ensure the application environment matches the rated voltage and current limits. Check for RoHS compliance requirements if applicable to your region. Confirm terminal block compatibility with existing wiring infrastructure before procurement.

Power Line Filter Modules Selection Notes

Select this component when three-phase noise suppression is required for high-voltage systems up to 760V. Consider the 25A current rating and terminal block interface for integration. Evaluate the operating temperature range against environmental conditions. Compare physical dimensions and mounting requirements with available space constraints in the design.

Power Line Filter Modules Part Context

This component belongs to the FMBC EP series of power line filters manufactured by Schurter Inc. The series focuses on electromagnetic compatibility solutions for industrial applications. These modules are designed to handle significant electrical loads while maintaining signal integrity in noisy environments.
