FMBC-394D-J814

Power Line Filter Modules Overview

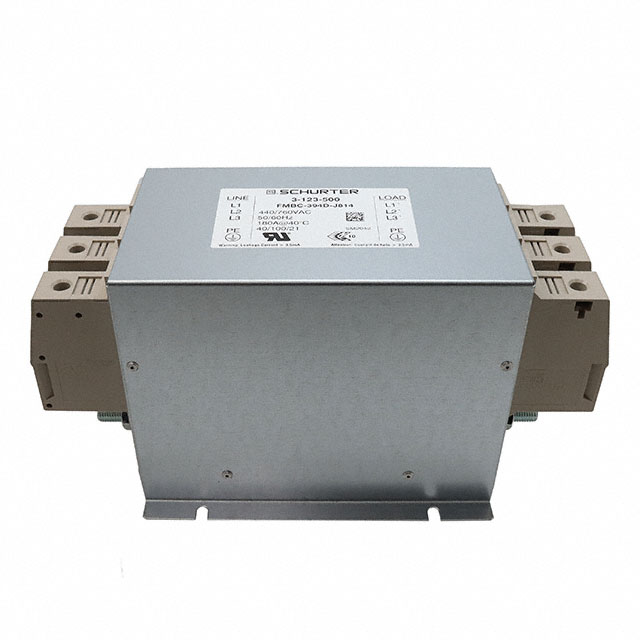

The FMBC-394D-J814 is a three-phase, two-stage RFI power line filter from the Schurter FMBC EP series. It supports a rated voltage of 760V AC and a current rating of 180A. Designed for industrial applications operating at 50Hz or 60Hz, it utilizes screw clamp termination for secure connections. The unit features chassis mount installation and operates within a temperature range of -40°C to +100°C.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• High current capacity suitable for heavy-duty industrial loads
• Robust construction with screw clamp termination

Power Line Filter Modules Applications

• Industrial motor drives
• Power conversion systems
• Heavy machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-394D-J814 against official Schurter documentation to confirm the 760V AC rating and 180A current capacity. Ensure compatibility with your system's mounting requirements and terminal specifications before procurement.

Power Line Filter Modules Selection Notes

Select this component when high-current three-phase filtering is required in harsh environments. The wide operating temperature range and robust mechanical design make it suitable for demanding industrial settings where standard filters may fail.

Power Line Filter Modules Part Context

This model belongs to the FMBC EP series, designed for high-power applications. It complements other Schurter filters by offering specialized performance for higher voltage and current ratings compared to standard series models.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified equivalents. Do not assume cross-compatibility with other series without verifying electrical and mechanical parameters.
