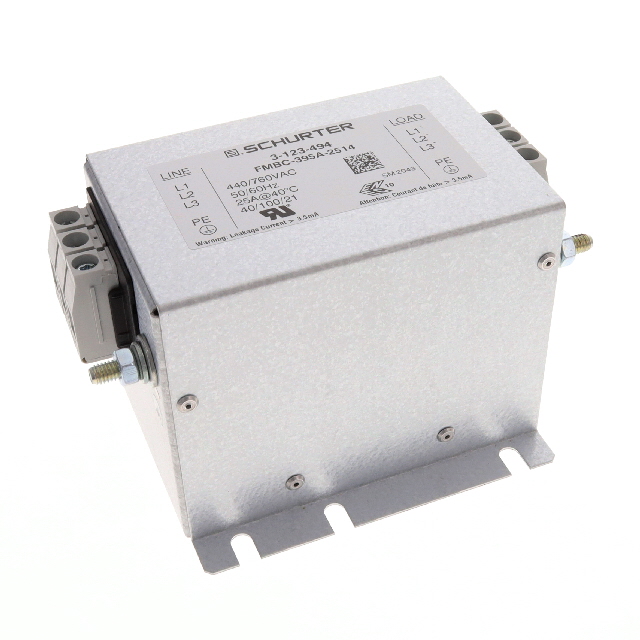

FMBC-395A-2514

$99.33

Description：LINE FILTER 760VAC 25A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box

SKU:eebc2eb97745 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMBC-395A-2514 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 760VAC 25A CHASS MNT. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMBC-395A-2514

Description：LINE FILTER 760VAC 25A CHASS MNT
Series：FMBC EP
Mfr：SCHURTER Inc.
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：760V
Current：25 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMBC-395A-2514

FMBC-395A-2514

Power Line Filter Modules Overview

The FMBC-395A-2514 is a three-phase EMC/EMI line filter from the Schurter FMBC EP series. It features a rated AC voltage of 760V and a current rating of 25A. The unit operates within a temperature range of -40°C to 100°C and utilizes terminal block connections for installation.

Power Line Filter Modules Feature Summary

Three-phase configuration for industrial power applications
Two-stage filtering architecture for enhanced noise suppression
Terminal block mounting style for secure electrical connection

Power Line Filter Modules Applications

Industrial machinery electromagnetic interference reduction
Power quality improvement in three-phase systems
EMC compliance for heavy equipment

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-395A-2514 against official Schurter documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before procurement. Cross-reference datasheets for precise dimensional and thermal data.

Power Line Filter Modules Selection Notes

Select this component based on its 760V AC rating and 25A capacity for three-phase environments. Consider the FMBC EP series characteristics for two-stage filtering needs. Verify terminal block interface suitability for the target application wiring.

Power Line Filter Modules Part Context

This component belongs to the FMBC EP series, designed as an EMC/EMI line filter. It serves as a specialized module for mitigating electromagnetic interference in industrial power distribution networks requiring robust three-phase filtering capabilities.
