FMBC-A91C-1612

Power Line Filter Modules Overview

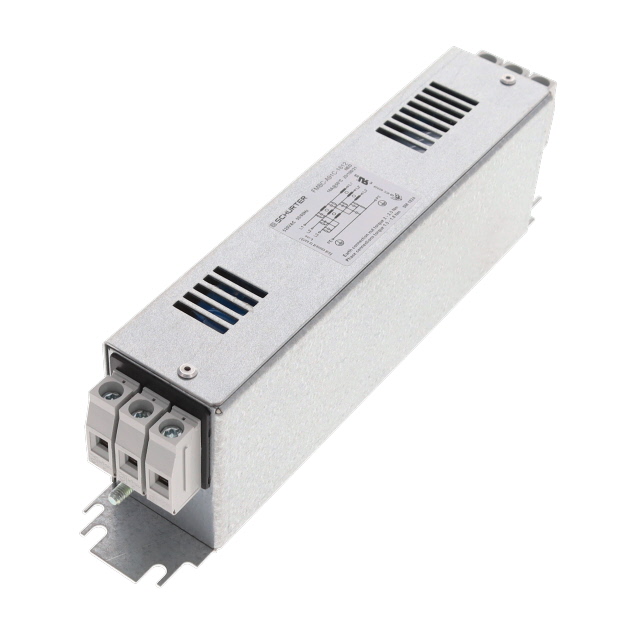

The FMBC-A91C-1612 is a three-phase (Delta) EMC/EMI line filter from the Schurter FMBC NEO series. It features a two-stage configuration designed for industrial power applications. The unit supports rated AC voltages of 480V and 520V with an operating frequency of 50/60Hz. It handles a continuous current of 16A. The device utilizes terminal block connections for secure installation. It complies with RoHS standards, ensuring environmental safety for electronic assemblies.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Designed specifically for three-phase Delta power systems
• Terminal block connection method for robust electrical interfacing

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• Factory automation control panels

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirement against the datasheet to ensure compatibility with the 480V or 520V system. Confirm that the load current does not exceed the 16A continuous rating. Check for any additional mounting hardware requirements associated with the terminal block interface. Ensure the application environment matches the specified thermal limits.

Power Line Filter Modules Selection Notes

Select this model when a two-stage attenuation profile is required for Delta-connected three-phase networks. It is suitable for environments needing reliable EMI reduction without excessive size constraints typical of single-stage units. Consider the terminal block termination style if screw-down wiring is preferred over PCB mounting. Validate that the 16A current capacity aligns with the peak operational demands of the connected equipment.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which focuses on compact and efficient filtering solutions. The series offers various configurations for different phase and current requirements. This specific part addresses the need for high-performance noise suppression in standard industrial power distributions where space and efficiency are critical factors.

Power Line Filter Modules Replacement Considerations

FMBC-R91C-1612 is a confirmed substitute within the same product family.
