FMBC-A91G-J310

Power Line Filter Modules Overview

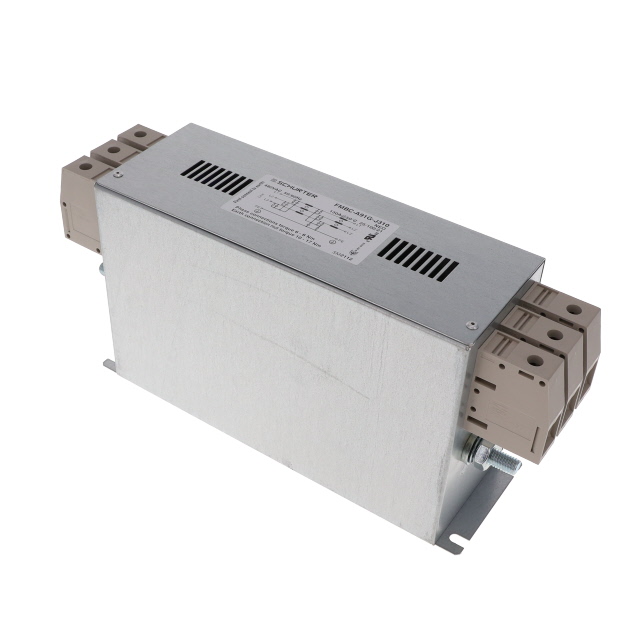

The FMBC-A91G-J310 is a three-phase, two-stage RFI filter from the Schurter FMBC NEO series. It supports a maximum current of 130 A and operates at voltages up to 480 VAC or 520 VAC at 50/60 Hz. The unit features screw terminal connections for chassis mounting. Key electrical parameters include a capacitance of 6.8 μF, inductance of 1.9 mH, leakage current of 33 mA, and power loss of 6.8 W. Operating temperatures range from -25°C to 100°C. Physical dimensions are 275 mm length, 85 mm height, and 50 mm depth.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with screw terminal connections for secure installation
• Compliant with UL1283 standards for safety certification

Power Line Filter Modules Applications

• Industrial machinery requiring three-phase power conditioning
• Delta-connected AC power systems operating at 480V or 520V
• Equipment sensitive to conducted radio frequency interference

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480VAC vs 520VAC) and current capacity against your system requirements before ordering. Confirm that the chassis mounting style and screw terminal interface match your enclosure design. Ensure compliance with local safety standards such as UL1283 is required for your application. Check lead times as availability may vary by region.

Power Line Filter Modules Selection Notes

Select this model for applications requiring high current handling up to 130A in a three-phase configuration. The two-stage design is suitable for environments with significant noise pollution. Consider the physical dimensions (275x85x50mm) for adequate space allocation. Verify thermal management capabilities given the 6.8W power loss specification.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, which offers modular power line filters designed for industrial EMC applications. The series provides various current ratings and configurations to suit different power distribution needs while maintaining compact form factors.

Power Line Filter Modules Replacement Considerations

Cross-reference with other models in the FMBC NEO series for alternative current ratings. Verify compatibility with existing mounting hardware and terminal types when substituting.
