FTMH-130-03-F-DV-ES-A

Headers, Male Pins Overview

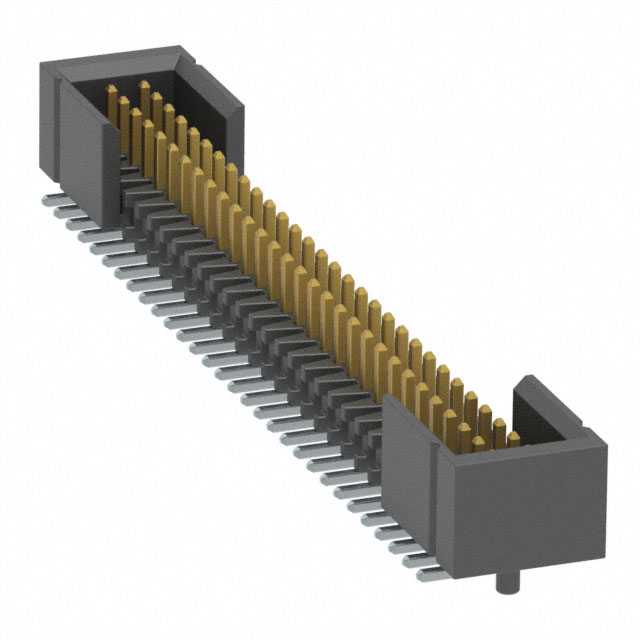

The Samtec FTMH-130-03-F-DV-ES-A is a 1.00 mm pitch surface mount micro terminal strip header featuring 60 positions arranged in a dual row configuration. It utilizes phosphor bronze contacts with gold plating, rated for 3.1 A current and 270 VAC voltage. The component employs a solder termination type with a straight mounting style and black liquid crystal polymer (LCP) insulation. Operating temperatures range from -55°C to +125°C, and it meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount design with 1.00 mm pitch for compact board integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Liquid crystal polymer insulation provides high thermal stability

Headers, Male Pins Applications

• High-density electronic interconnects
• Board-to-board connections
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the complete part number including suffixes such as 'A' or 'P' against official Samtec documentation to ensure correct packaging and specific feature configurations. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering, as availability may vary by region.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount header with a 1.00 mm pitch is required. Ensure mating socket compatibility with the specified contact length of 1.65 mm. Consider the dual-row layout for space-constrained designs requiring higher pin counts within a minimal footprint.

Headers, Male Pins Part Context

This part belongs to the FTMH series of 1.00 mm Surface Mount Micro Terminal Strips. The series offers flexible positioning options up to 100 I/Os and includes variants with end shrouds and guide posts. It is designed for applications demanding high reliability and cost-effective gold plating solutions.

Headers, Male Pins Replacement Considerations

Compatible mates include CLM-131-02-F-D low profile dual-wipe sockets. Verify mechanical dimensions and electrical ratings before substituting with other Samtec headers or third-party equivalents.
