FTSH-108-02-L-DV-ES-P

Headers, Male Pins Overview

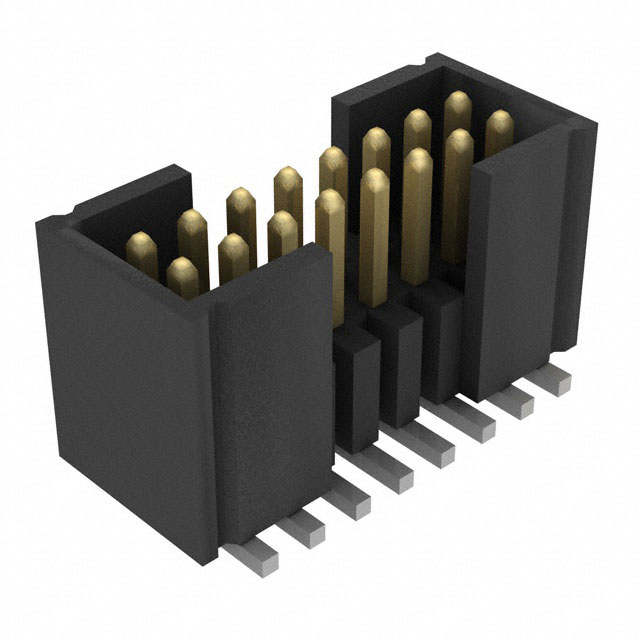

The FTSH-108-02-L-DV-ES-P is a high-reliability header strip manufactured by Samtec Inc. It features a .050 inch (1.27 mm) pitch with an 8-position, double-row configuration. The component utilizes vertical surface-mount termination and includes an end shroud for alignment. It is designed for applications requiring high mating cycles and meets or exceeds MIL-DTL-55302 testing standards.

Headers, Male Pins Feature Summary

• High reliability construction suitable for demanding mating cycle applications
• Configurable micro header design with various post height options
• End shroud option available to prevent incorrect installation

Headers, Male Pins Applications

• High mating cycle interconnects
• Severe environment testing applications
• Automotive A-Series product integration

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official documentation to confirm exact termination style, plating thickness, and packaging format. Ensure the selected variant matches the required board layout and environmental compliance standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust, vertically mounted surface-mount header is required. Consider the availability of polarized and keyed configurations to ensure correct assembly orientation in complex board-to-board connections.

Headers, Male Pins Part Context

This part belongs to the FTSH series of high-reliability header strips. The series offers highly configurable options including through-hole, surface mount, and mixed technology terminations in both vertical and horizontal orientations.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for verified substitute part numbers within the FTSH family that match the required pitch, row count, and termination style.
