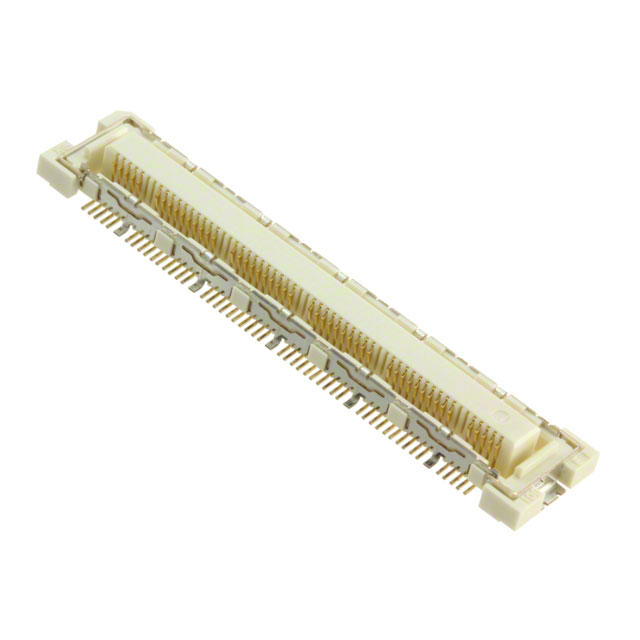

FX10B-100S/10-SV(91)

FX10B-100S/10-SV(91) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN RCPT 100POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for FX10B-100S/10-SV(91)

• Description：CONN RCPT 100POS SMD GOLD
• Series：FunctionMax™ FX10
• Mfr：Hirose Electric Co Ltd
• Package：Tape & Reel (TR)
• Connector Type：Receptacle, Center Strip Contacts
• Number of Positions：100
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Ground Plate, Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：4.00µin (0.100µm)
• Mated Stacking Heights：4mm, 5mm
• Height Above Board：0.126" (3.20mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for FX10B-100S/10-SV(91)
