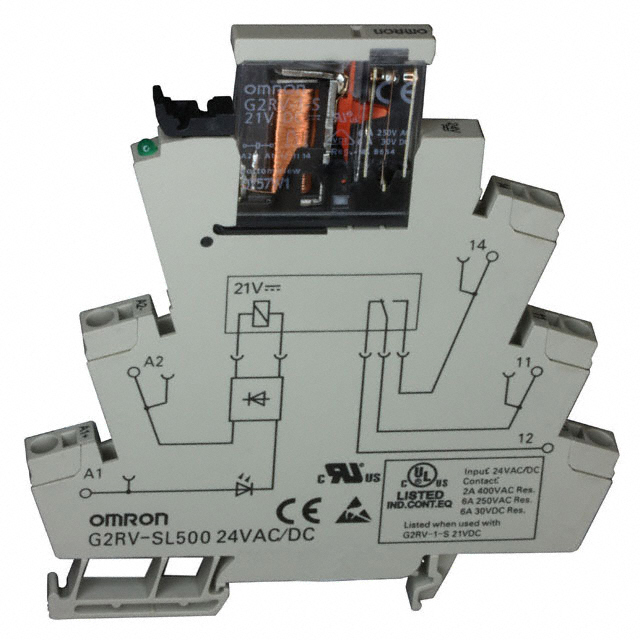

G2RV-SL500 AC/DC24

G2RV-SL500 AC/DC24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE SPDT 6A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for G2RV-SL500 AC/DC24

• Description：RELAY GEN PURPOSE SPDT 6A 24V
• Series：G2RV
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：24VAC/DC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：6:00 AM
• Switching Voltage：440VAC, 125VDC - Max
• Load - Max Switching：2640VA, 750W
• Coil Current：13 mA
• Coil Type：Non Latching
• Features：Socket Included
• Termination Style：Spring Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：19.2 VAC/DC
• Must Release Voltage：2.4 VAC/DC
• Operating Temperature：-40°C ~ 55°C
• Contact Material：Silver Tin Indium (AgSnIn)
• Approval Agency：CE, cULus, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：40 ms

Power Relays, Over 2 Amps datasheet and documents for G2RV-SL500 AC/DC24
