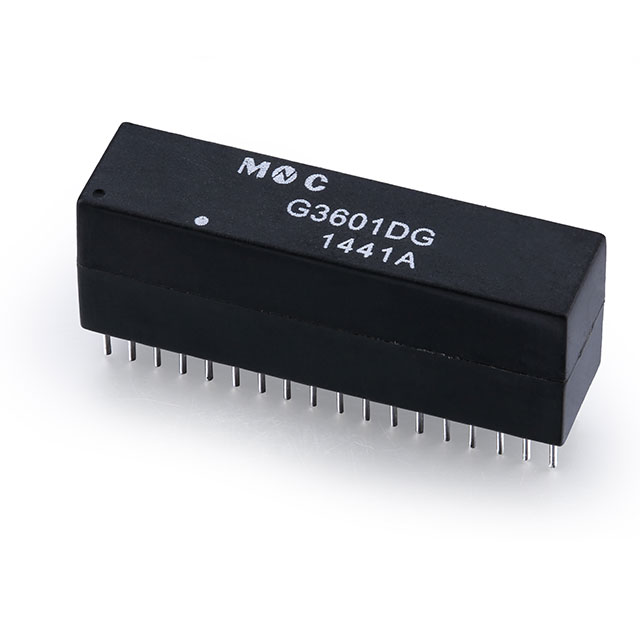

G3601DG

Pulse Transformers Overview

The G3601DG is a quad LAN pulse transformer designed for 10/100/1000 Base-T applications. It features a 1CT:1CT turns ratio and a primary inductance of 350µH. The component supports an operating temperature range from 0°C to 70°C and utilizes a through-hole tube mounting package. This device provides isolation with a voltage rating of 1.5kV, ensuring reliable signal transmission in high-speed network environments.

Pulse Transformers Feature Summary

• Supports 10/100/1000 Base-T Ethernet standards
• Provides 1.5kV isolation capability
• Utilizes through-hole mounting for robust integration

Pulse Transformers Applications

• Ethernet network interface cards
• Network switch ports
• Router hardware modules

Pulse Transformers Procurement Notes

Verify the manufacturer part number G3601DG against official Mentech Technology USA Inc. documentation to ensure authenticity. Confirm that the received components match the specified 350µH inductance and 1CT:1CT ratio. Check for physical damage to the through-hole leads and ensure the packaging integrity remains intact prior to installation.

Pulse Transformers Selection Notes

Select this component when designing circuits requiring integrated pulse transformation for Gigabit Ethernet speeds. Ensure the chosen solution accommodates the 0°C to 70°C operating temperature range. Verify that the through-hole form factor aligns with the target PCB layout constraints and manufacturing capabilities.

Pulse Transformers Part Context

This part belongs to the LAN 10/100/1000 Base-T transformer series manufactured by Mentech Technology USA Inc. The company specializes in optical and magnetic components, providing ODM and JDM services. The G3601DG serves as a critical passive element for maintaining signal integrity in modern networking infrastructure.

Pulse Transformers Replacement Considerations

Consult official datasheets for direct substitutes within the same LAN transformer family. Verify pin compatibility and electrical specifications before swapping components.
