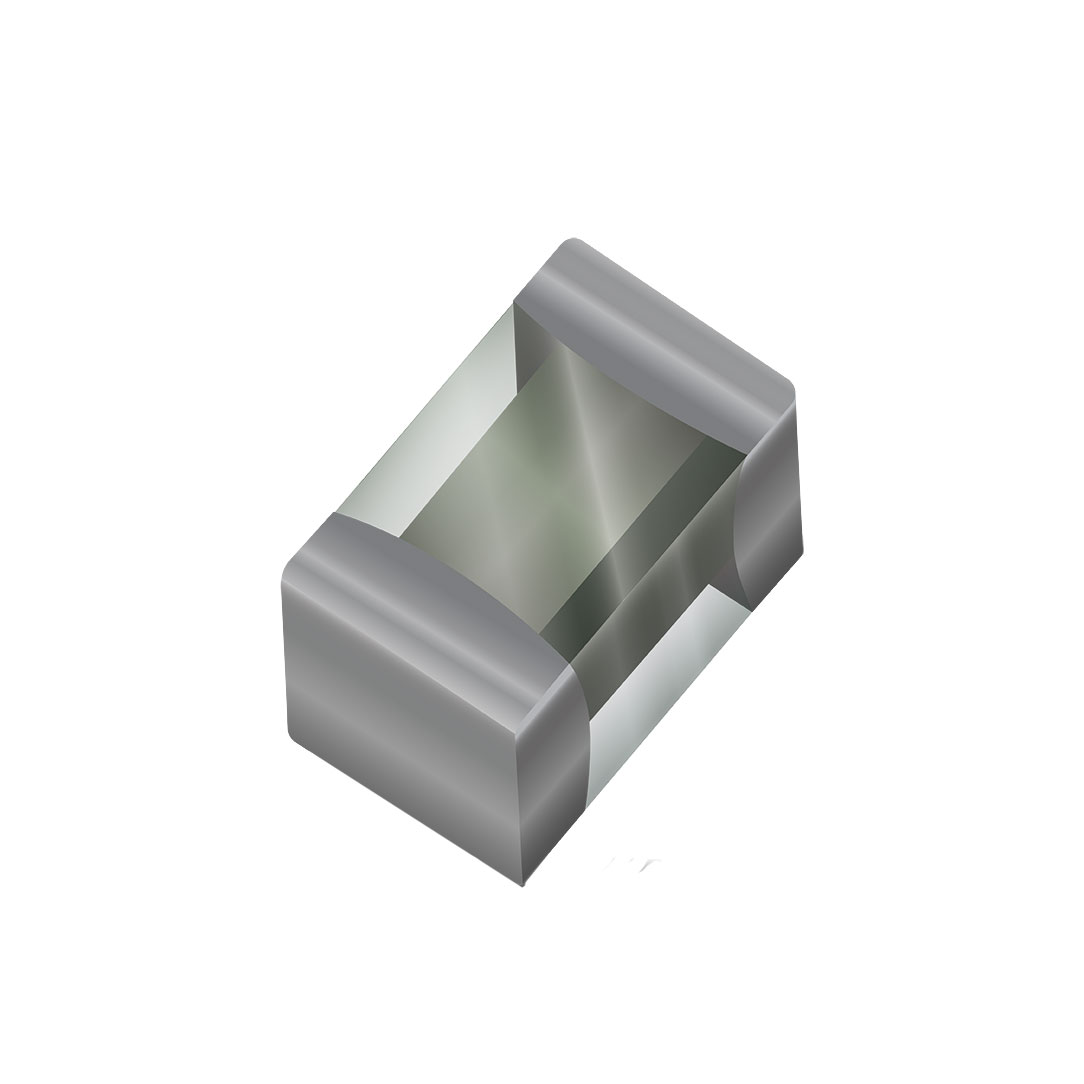

GG040205170N2P

GG040205170N2P is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists KYOCERA AVX. Its product description is TVS DIODE 5VWM 10VC 402. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for GG040205170N2P

• Description：TVS DIODE 5VWM 10VC 402
• Series：GiGUARD
• Mfr：KYOCERA AVX
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：5V
• Voltage - Breakdown (Min)：5.1V
• Voltage - Clamping (Max) @ Ipp：10V
• Current - Peak Pulse (10/1000µs)：8A (8/20µs)
• Power - Peak Pulse：80W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：17pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：0402 (1005 Metric)
• Supplier Device Package：0402 (1005 Metric)
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for GG040205170N2P
