GLHPDLTEMIMO-LTB

Antennas RF Overview

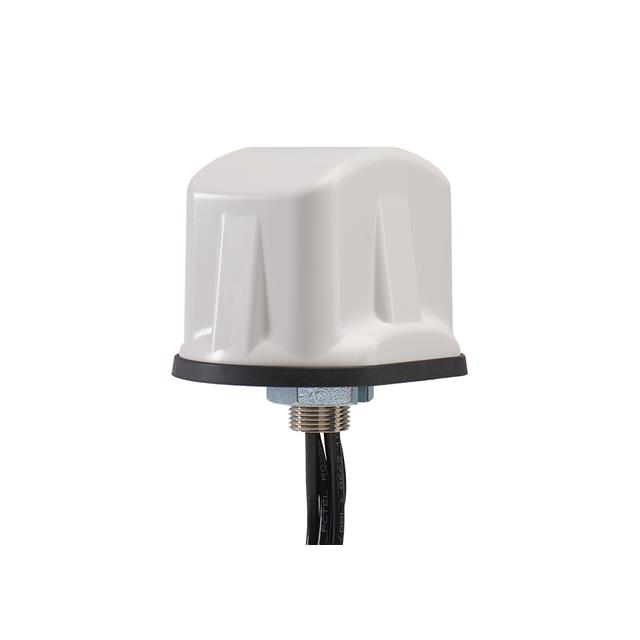

The GLHPDLTEMIMO-LTB is a Trooper™ series permanent mount RF antenna module by Amphenol PCTEL. It supports 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, and Wi-Fi. Frequency ranges include 617MHz-960MHz, 1.565GHz-1.608GHz, 1.71GHz-2.7GHz, 2.4GHz-2.5GHz, and 4.9GHz-5.9GHz. Center frequencies are 789MHz, 1.5865GHz, 2.205GHz, 2.45GHz, and 5.4GHz. Gain varies from -2dBic to 4dBi across bands. VSWR is 2:1. Max power is 50W. Connector types are RP-SMA (1) and SMA (2). Cable length is 5.1816m. Mounting is magnetic. Height is max 92.00mm. IP67 rated.

Antennas RF Feature Summary

• Integrates multiple wireless technologies including cellular, GNSS, and Wi-Fi into a single compact housing.
• Features a magnetic mounting base for flexible installation on metallic surfaces.
• Includes an integrated low-noise amplifier (LNA) to enhance signal reception performance.
• Constructed with IP67 ingress protection rating for reliable operation in harsh environments.

Antennas RF Applications

• Intelligent Transportation Systems (ITS)
• Public Safety vehicles
• Ambulance communications
• Industrial IoT gateways

Antennas RF Procurement Notes

Verify the specific connector configuration required for your system integration, as this model utilizes both RP-SMA and SMA interfaces. Confirm that the 5.1816-meter cable length meets your deployment distance requirements. Ensure the magnetic mounting surface is sufficiently flat and metallic to maintain the specified IP67 seal and mechanical stability during operation.

Antennas RF Selection Notes

Select this model when a multi-band solution covering LTE, 5G, GNSS, and Wi-Fi is required for mobile or semi-permanent installations. The magnetic base offers a non-invasive alternative to stud mounts. Consider the integrated LNA for applications requiring improved sensitivity in weak signal areas. Verify compatibility with existing cabling infrastructure due to the mixed connector types.

Antennas RF Part Context

This component belongs to the Trooper™ platform, designed for high-speed RF communication systems. It is part of Amphenol PCTEL's portfolio of purpose-built antennas for industrial and transportation applications. The product line emphasizes efficiency by combining multiple frequency bands into one unit.

Antennas RF Replacement Considerations

GLHPDLTEMIMO-SF-MM

Antennas RF FAQ

What is the maximum power handling capability?

The antenna supports a maximum power input of 50 Watts.

Does this antenna include an active component?

Yes, it features an integrated Low Noise Amplifier (LNA).

What is the cable length provided?

The standard cable length is 5.1816 meters.
