GPP100MS-E3/54

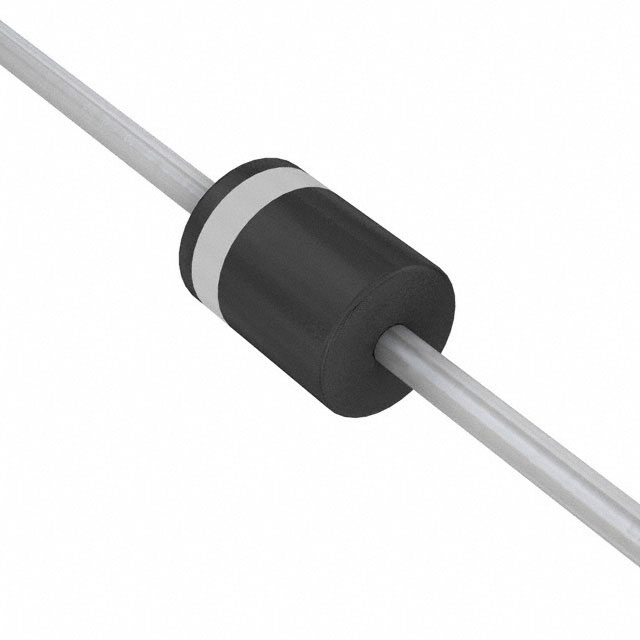

Description：DIODE STANDARD 1000V 10A P600
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)

SKU:428b22591e91 Category: Single Diodes Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GPP100MS-E3/54 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Vishay General Semiconductor - Diodes Division. Its product description is DIODE STANDARD 1000V 10A P600. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for GPP100MS-E3/54

Description：DIODE STANDARD 1000V 10A P600
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tape & Reel (TR)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1000 V
Current - Average Rectified (Io)：10A
Voltage - Forward (Vf) (Max) @ If：1.05 V @ 10 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：5.5 µs
Current - Reverse Leakage @ Vr：5 µA @ 1000 V
Capacitance @ Vr, F：110pF @ 4V, 1MHz
Mounting Type：Through Hole
Package / Case：P600, Axial
Supplier Device Package：P600
Operating Temperature - Junction：-55°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for GPP100MS-E3/54

GPP100MS-E3/54

Single Diodes Overview

The GPP100MS-E3 is a plastic rectifier from Vishay General Semiconductor designed for photovoltaic solar panel protection. It features a glass passivated chip junction and operates within a temperature range of -55 to +175 °C. The device provides a maximum repetitive peak reverse voltage of 1000 V and supports a maximum average forward rectified current of 10 A. Peak forward surge capability reaches 440 A, with a typical thermal resistance of 20 °C/W (junction-to-ambient) and 4.0 °C/W (junction-to-lead).

Single Diodes Feature Summary

Glass passivated chip junction construction
Low forward voltage drop characteristics
High forward surge current capability

Single Diodes Applications

Photovoltaic solar panel protection

Single Diodes Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and material categorization details against the latest Vishay documentation. Ensure ordering suffixes match specific packaging requirements such as tape and reel or ammpack formats.

Single Diodes Selection Notes

Evaluate thermal management requirements based on the specified junction-to-ambient and junction-to-lead thermal resistances. Consider the operating temperature range and forward voltage drop at expected load currents. Verify that the 1000 V reverse voltage rating exceeds the system's maximum peak reverse voltage under all operating conditions.

Single Diodes Part Context

This component belongs to the Vishay General Semiconductor diode portfolio, specifically categorized as a plastic rectifier. It utilizes the P600 package style and incorporates matte tin plated leads for solderability. The product adheres to JESD standards for terminal soldering and whisker testing compliance.
