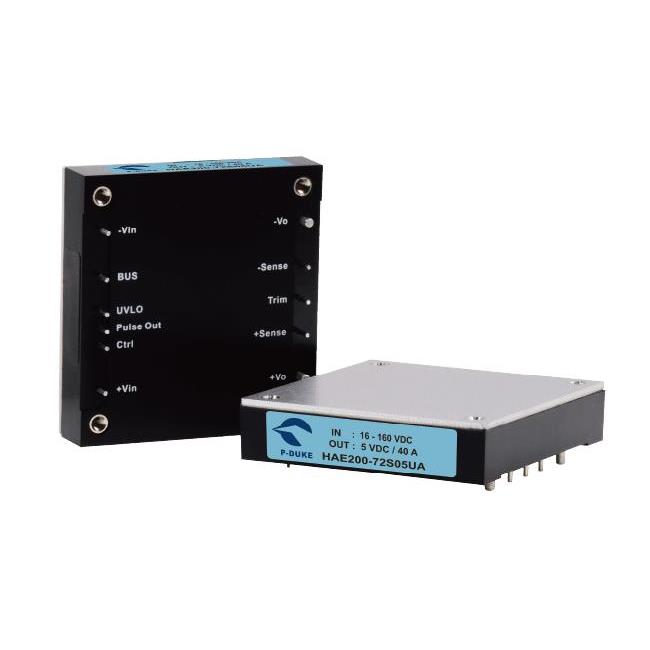

HAE200-72S05UA

HAE200-72S05UA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 200W / VOUT:5. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for HAE200-72S05UA

• Description：ISOLATED / 200W / VOUT:5
• Series：HAE200U (200W)
• Mfr：P-DUKE Technology
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：16V
• Voltage - Input (Max)：160V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：200 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off, Remote Sense
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：90.50%
• Mounting Type：Through Hole
• Package / Case：Half Brick
• Size / Dimension：2.40" L x 2.28" W x 0.51" H (61.0mm x 57.9mm x 13.0mm)
• Supplier Device Package：Half Brick
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：62368-1
• Grade：-
• Qualification：-
