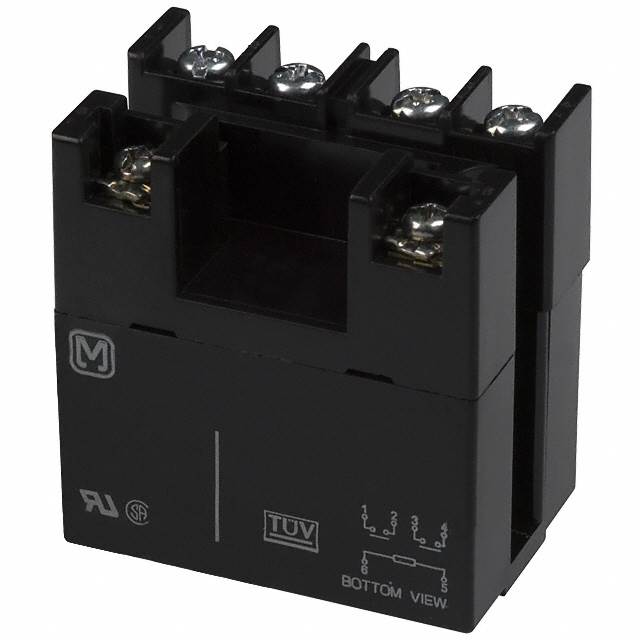

HE2AN-S-DC24V

HE2AN-S-DC24V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE DPST 25A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for HE2AN-S-DC24V

• Description：RELAY GEN PURPOSE DPST 25A 24V
• Series：HE
• Mfr：Panasonic Electric Works
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：24VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：25 A
• Switching Voltage：277VAC, 30VDC - Max
• Load - Max Switching：6925VA, 750W
• Coil Current：80 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：16.8 VDC
• Must Release Voltage：2.4 VDC
• Operating Temperature：-50°C ~ 55°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CSA, VDE, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for HE2AN-S-DC24V
