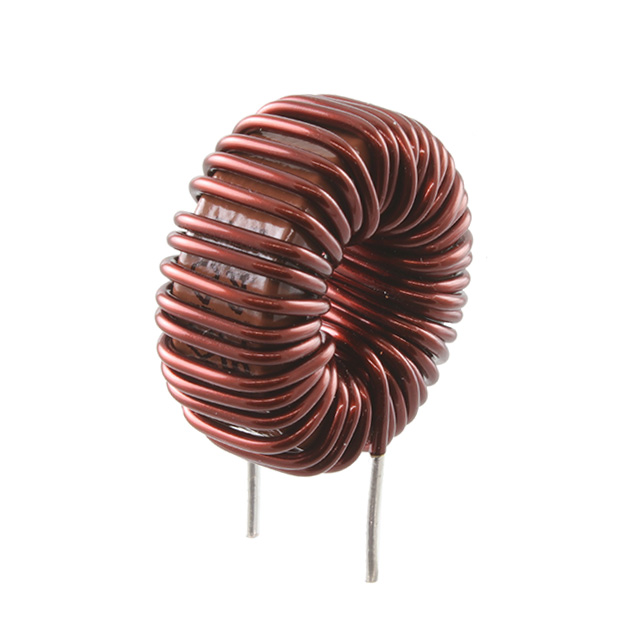

HHBC13-1R2A0081V

$4.62

Description：CMC 81UH 6A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk,Tray

SKU:57478ccba5a1 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC13-1R2A0081V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 81UH 6A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC13-1R2A0081V

Description：CMC 81UH 6A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk,Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：24.7mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.181" Dia (30.00mm)
Height (Max)：1.181" (30.00mm)
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：81 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC13-1R2A0081V

HHBC13-1R2A0081V

Common Mode Chokes Overview

The KEMET HHBC13-1R2A0081V is a through-hole differential mode power inductor from the HHBC series. It features an inductance of 81 µH with a tolerance of 20%. The component supports a maximum DC current of 6 A and has a maximum DC resistance of 24.7 mΩ. It operates within a temperature range of -40 °C to +125 °C, with a specified temperature rise of 30 K. The device utilizes Fe-Si-Al dust core material for low core loss and high-frequency drive capabilities.

Common Mode Chokes Feature Summary

Utilizes Fe-Si-Al dust core material for low core loss and high-frequency performance
Designed for smoothing, converting, and general noise countermeasure applications
Provides a balance between core loss characteristics and DC superposition performance

Common Mode Chokes Applications

Power supply filtering and smoothing circuits
DC-DC converter input/output stages
General electronic noise suppression

Common Mode Chokes Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with through-hole mounting requirements and thermal management needs for the target application environment.

Common Mode Chokes Selection Notes

Select this component when a high-current power inductor with low DC resistance is required for differential mode filtering. Consider the 6 A current rating and 81 µH inductance value relative to circuit design specifications. Verify that the operating temperature range meets system environmental constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of toroidal power inductors. These components are designed for through-hole mounting and are characterized by their use of iron-silicon-aluminum powder cores, which offer superior saturation characteristics compared to standard ferrite cores.
