HHBC13-1R2A0127V

Common Mode Chokes Overview

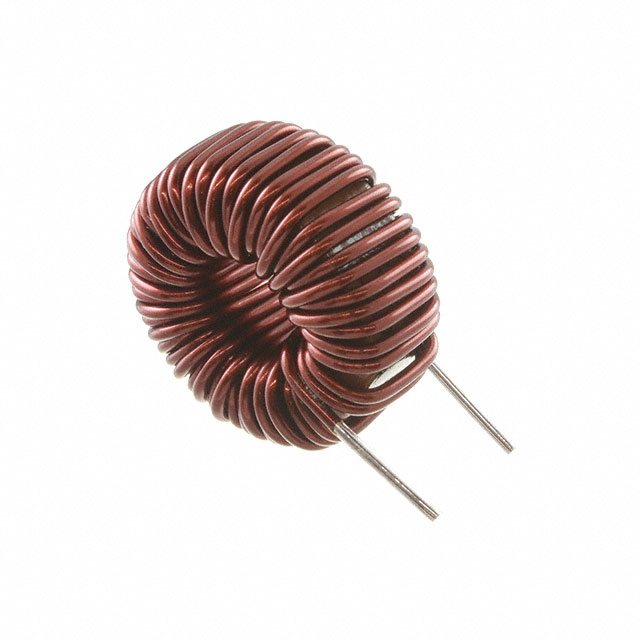

The KEMET HHBC13-1R2A0127V is a through-hole power inductor from the HHBC series, designed for line filtering applications. It features a toroidal core with an inductance of 127 µH and a tolerance of 20%. The component supports a maximum DC current of 6 A at a test frequency of 100 kHz. Its direct current resistance is 0.0317 Ohms. The device operates within a temperature range of -40 °C to 125 °C and utilizes vertical pins without a base.

Common Mode Chokes Feature Summary

• Toroidal magnetic core construction for efficient line filtering
• High current handling capability up to 6 Amperes
• Through-hole mounting configuration with vertical leads

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression circuits
• General purpose line filtering

Common Mode Chokes Procurement Notes

Verify the specific manufacturer datasheet for the HHBC13-1R2A0127V to confirm RoHS compliance status and detailed thermal characteristics. Ensure that the selected distributor provides authentic components with traceable origin. Cross-reference the part number against official KEMET documentation to validate electrical parameters before integration into production designs.

Common Mode Chokes Selection Notes

Select this component when a high-current toroidal inductor is required for low-frequency noise attenuation. The 127 µH value suits applications needing significant impedance at 100 kHz. Consider the physical dimensions and through-hole requirements during PCB layout. Evaluate the 6 A saturation current against peak load conditions to prevent performance degradation.

Common Mode Chokes Part Context

This part belongs to the KEMET HHBC series of common mode chokes and power inductors. These components are characterized by their toroidal geometry and robust current ratings. The series offers various inductance values tailored for different filtering needs while maintaining consistent mechanical and thermal performance standards across the product line.

Common Mode Chokes Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Generic equivalents may not match the specific 6 A current rating or 127 µH tolerance. Verify pin compatibility and thermal limits before swapping.
