HHBC8S-0R6A0043V

Common Mode Chokes Overview

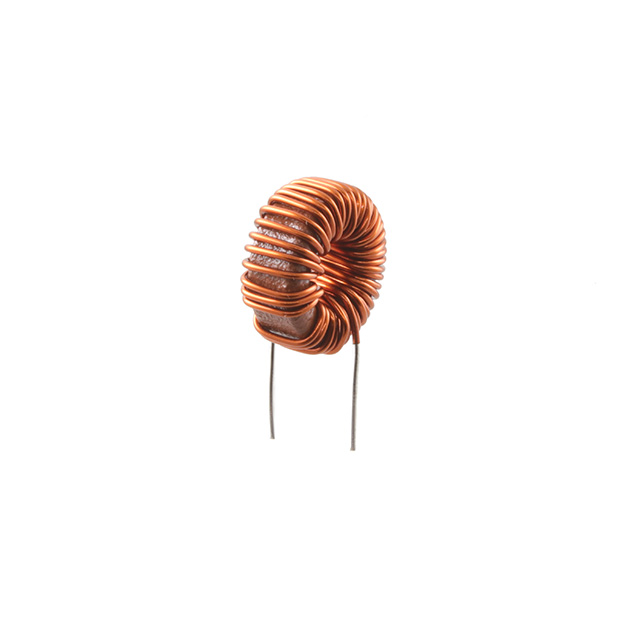

The KEMET HHBC8S-0R6A0043V is a leaded power inductor from the HHBC series, featuring a toroidal ferrite core and radial termination. It provides an inductance of 43 µH with a tolerance of ±20% at a test frequency of 100 kHz. The component supports a maximum DC current of 2 A and exhibits a maximum DC resistance of 54.1 mΩ. Designed for PCB mounting, it operates within a temperature range of -40 °C to +125 °C. The physical dimensions are 17 mm x 9.1 mm x 17 mm with a lead diameter of 0.6 mm and spacing of 7 mm.

Common Mode Chokes Feature Summary

• Utilizes a toroidal ferrite core structure for efficient magnetic containment.
• Features radial through-hole leads for standard PCB integration.
• Provides stable inductance characteristics under specified DC bias conditions.

Common Mode Chokes Applications

• Commercial electronic circuit filtering
• General-purpose power supply noise suppression
• Signal conditioning in industrial control systems

Common Mode Chokes Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure authenticity and correct technical specifications. Confirm that the received components match the required electrical parameters, including inductance value, current rating, and physical dimensions. Check for compliance with relevant environmental standards as indicated in the official datasheet before final acceptance.

Common Mode Chokes Selection Notes

Select this component when a shielded or unshielded toroidal inductor with radial leads is required for commercial applications. Ensure the design accommodates the specified maximum DC current of 2 A without saturation. Verify that the operating environment remains within the -40 °C to +125 °C range. Consider the physical footprint of 17 mm x 9.1 mm x 17 mm for PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of leaded power inductors. These devices are designed for general-purpose applications requiring reliable performance in commercial environments. The series offers various inductance values and current ratings to suit different circuit requirements while maintaining consistent physical and electrical characteristics across the product line.

Common Mode Chokes FAQ

Is the HHBC8S-0R6A0043V shielded?

No, the component is classified as unshielded according to its specifications.

What is the test frequency for the inductance measurement?

The inductance is measured at a test frequency of 100 kHz.
