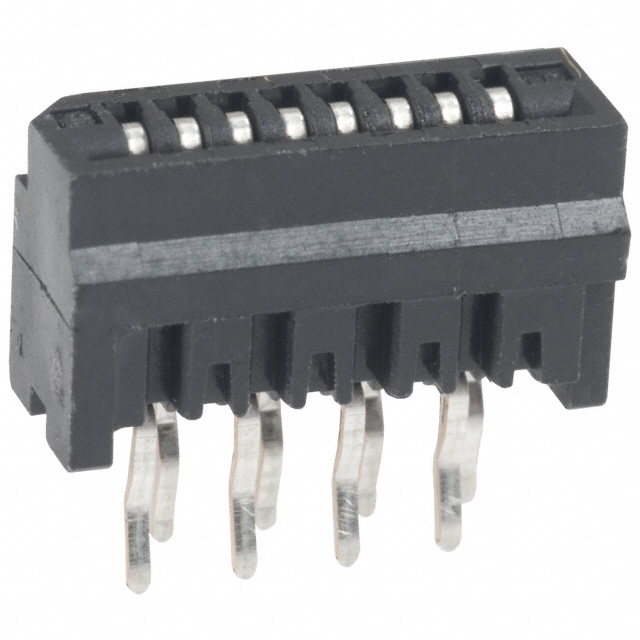

HLW8S-2C7LF

HLW8S-2C7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 8POS 1MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HLW8S-2C7LF

• Description：CONN FFC FPC VERT 8POS 1MM PCB
• Series：HLW-S
• Mfr：Amphenol ICC (FCI)
• Package：Tray
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：8
• Pitch：0.039" (1.00mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.33mm
• Height Above Board：0.232" (5.90mm)
• Locking Feature：-
• Cable End Type：-
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
• Actuator Material：-
• Features：-
• Voltage Rating：100V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HLW8S-2C7LF
