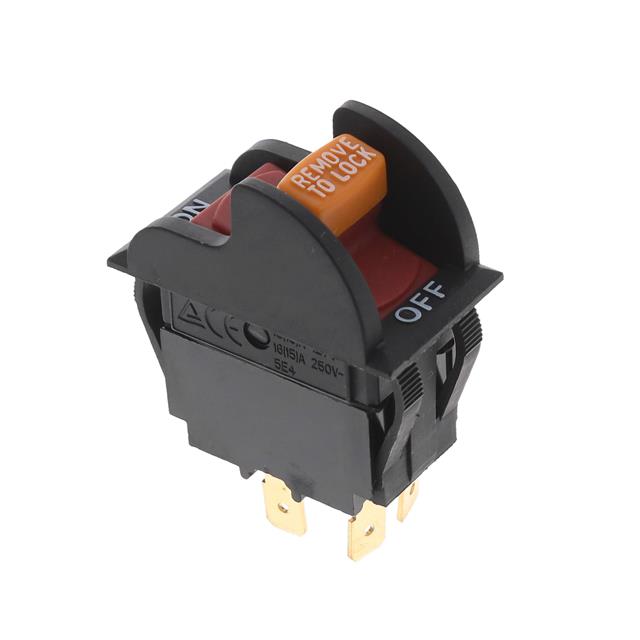

HY7-42D-196

HY7-42D-196 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH ROCKER DPDT 20A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for HY7-42D-196

• Description：SWITCH ROCKER DPDT 20A 125V
• Series：HY
• Mfr：E-Switch
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：DPDT
• Switch Function：On-Off
• Current Rating (Amps)：20A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Red
• Actuator Marking：ON OFF, Horizontal
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：-
• Features：-
• Panel Cutout Dimensions：Rectangular - 37.00mm x 21.10mm
• Operating Temperature：-20°C ~ 65°C
• Approval Agency：cULus

Rocker Switches datasheet and documents for HY7-42D-196
