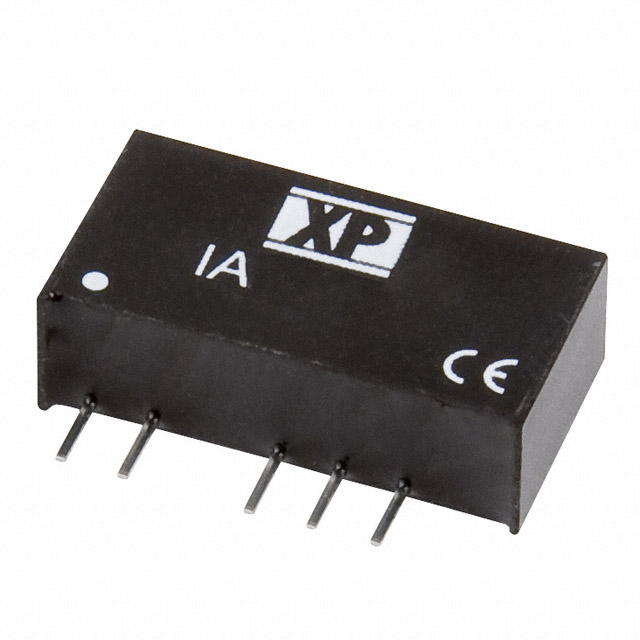

IA1209S

IA1209S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-9V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IA1209S

• Description：DC DC CONVERTER +/-9V 1W
• Series：IA (1W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：55mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for IA1209S
