IND060SIP

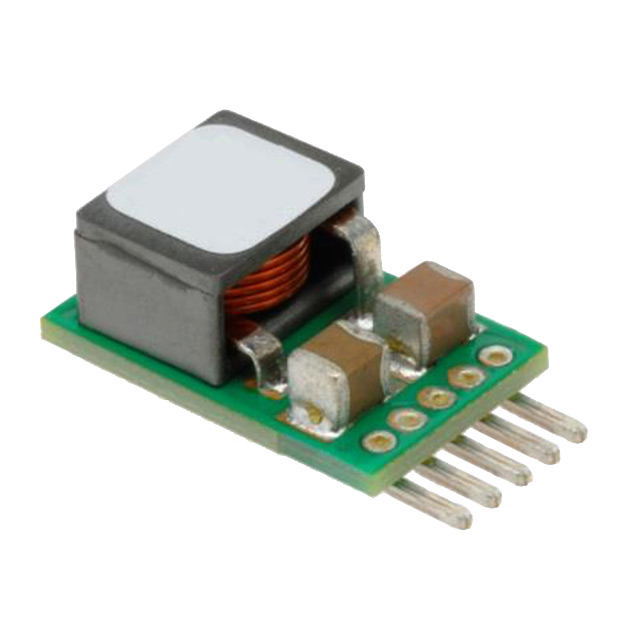

IND060SIP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.59-5.5V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IND060SIP

• Description：DC DC CONVERTER 0.59-5.5V 60W
• Series：Hornet (60W)
• Mfr：OmniOn Power™
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9.6V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.59 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：60 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：5-SIP Module
• Size / Dimension：0.41" L x 0.33" W x 0.65" H (10.4mm x 8.4mm x 16.5mm)
• Supplier Device Package：5-SIP
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for IND060SIP
